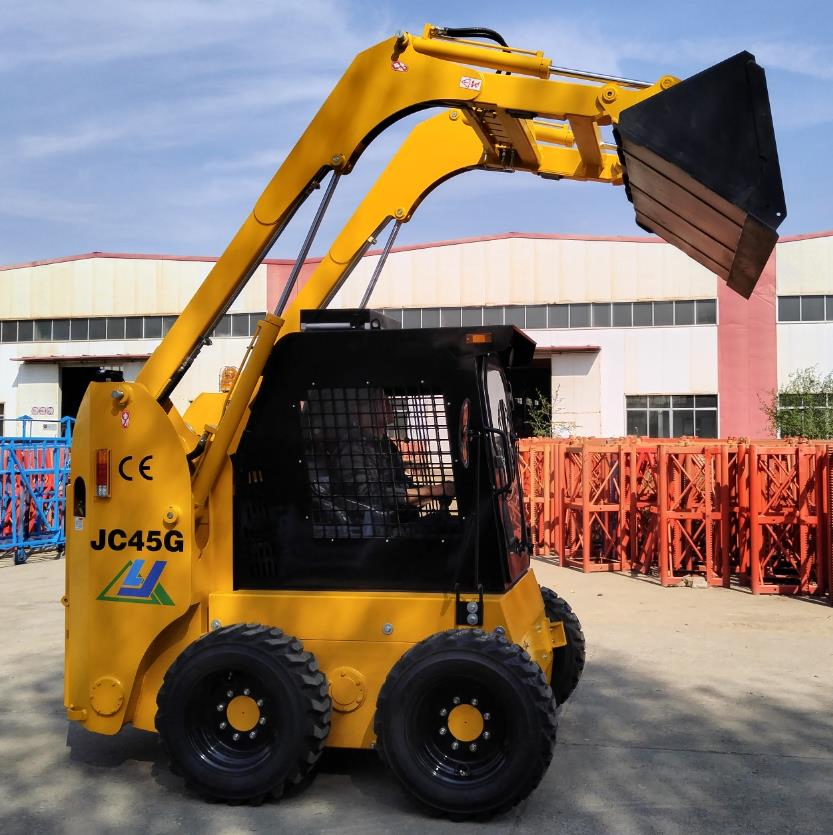

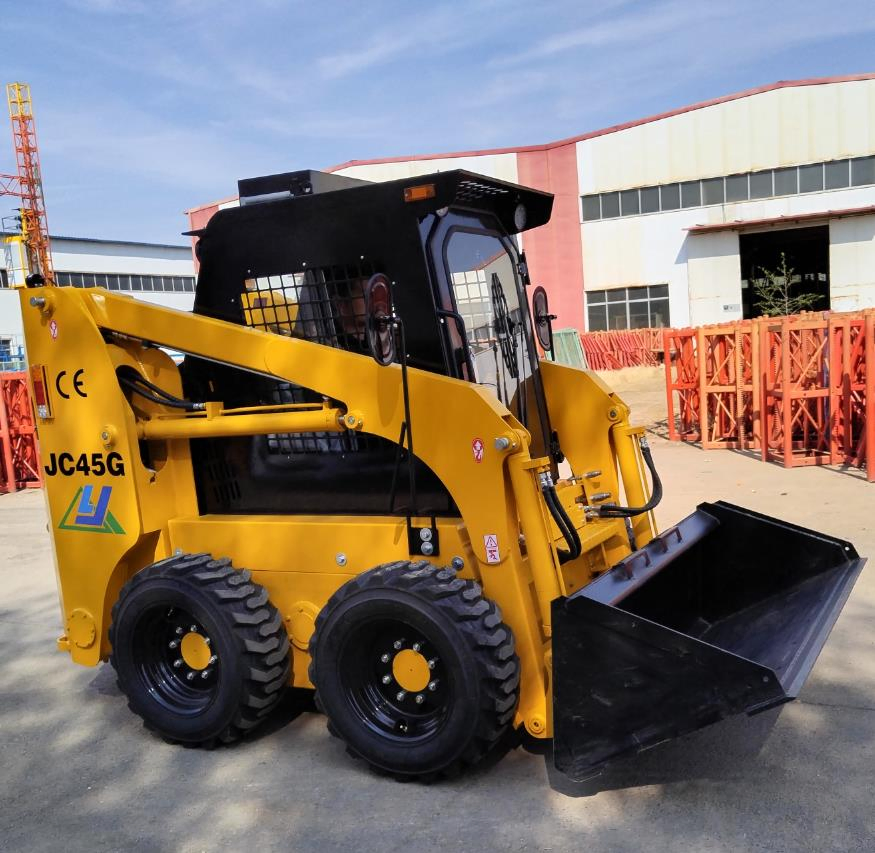

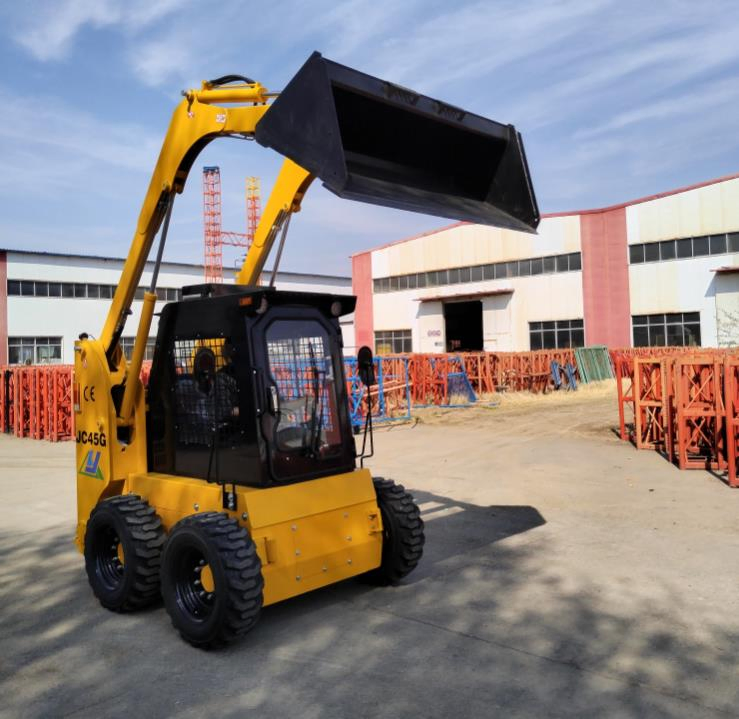

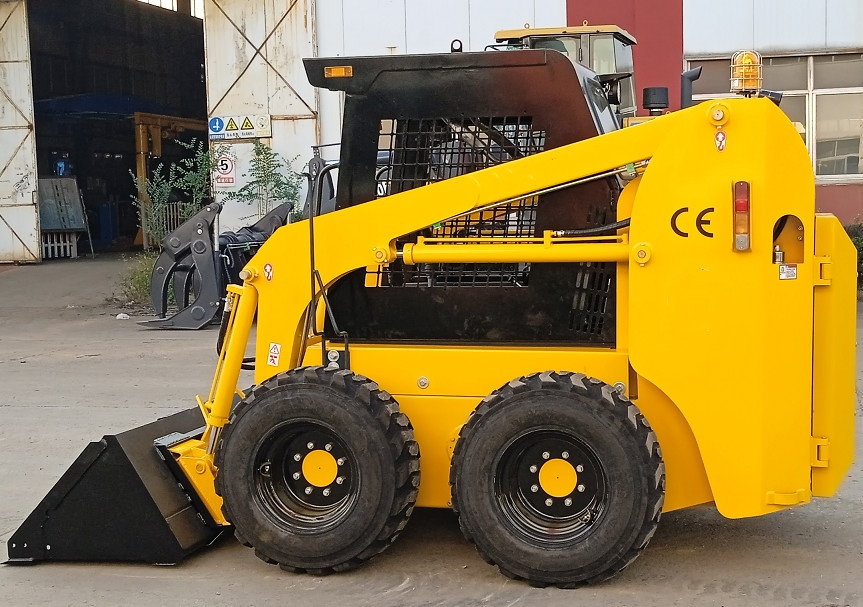

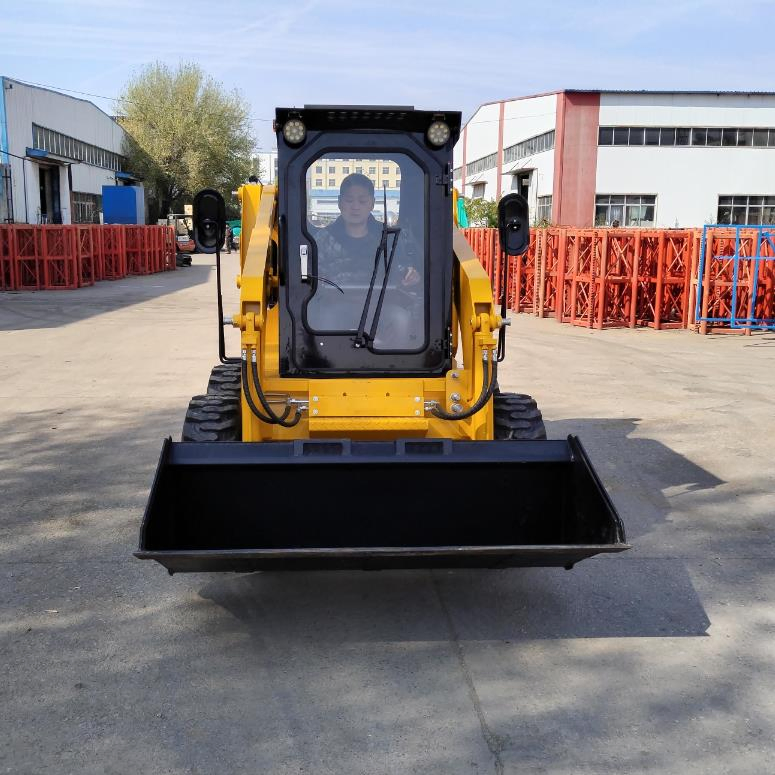

Mini skid steer loader JC45 model with 36.7kw diesel engine
The skid steer loader is a compact, rigid-frame engine-powered machine with lift arms used to attach a wide variety of labor-saving tools or buckets. Known for their agility, they turn by locking the wheels on one side while the other side drives, allowing them to turn within their own footprint, making them ideal for tight spaces in construction, agriculture, and landscaping.
JC45 skid steer loader is one of our most popular products. Powered by a 50HP diesel engine, it features a hydraulic flow rate of 62.5L/min. A wide range of attachments can be utilized, including augers, trenchers, sweepers, hydraulic hammers, and pallet forks.
| Item | Description | Item | Description |
|---|---|---|---|
| Rated operating capacity(kg) | 700 | Hinge pin height (mm) | 3080 |
| Tipping load (kg) | 1400 | Total height (mm) | 2050 |
| Bucket capacity(m3) | 0.4 | Length with bucket (mm) | 3420 |
| Hydraulic pump flow (L/min) | 75 | Length without bucket(mm) | 2640 |
| Engine power (hp) | 50 | Width with bucket (mm) | 1740 |
| Weight(kg) | 3100 | Track width (mm) | 1450 |
| Max travel speed (km/h) | 12 | Wheelbase (mm) | 991 |
| Grade ability | 20 | Ground clearance (mm) | 185 |
| Tire | 10-16.5 | Dumping angle | 40 |
| Fuel/hyd oil capacity (L) | 65/65 | Dumping height (mm) | 2380 |

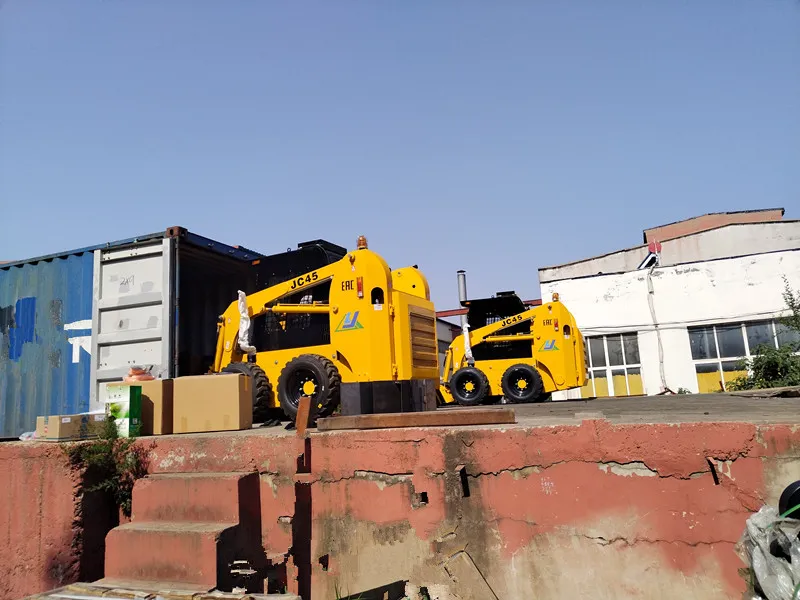

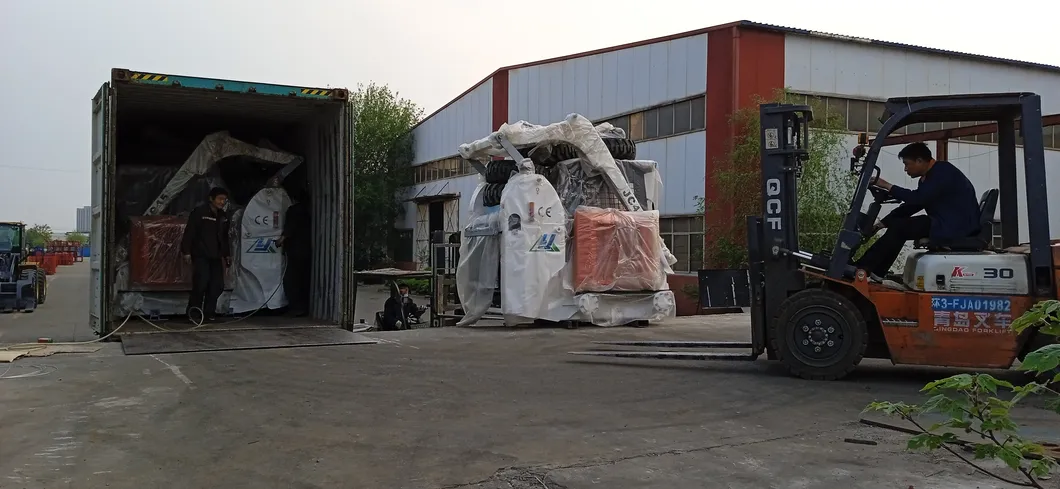

Shipping and Delivery Display:

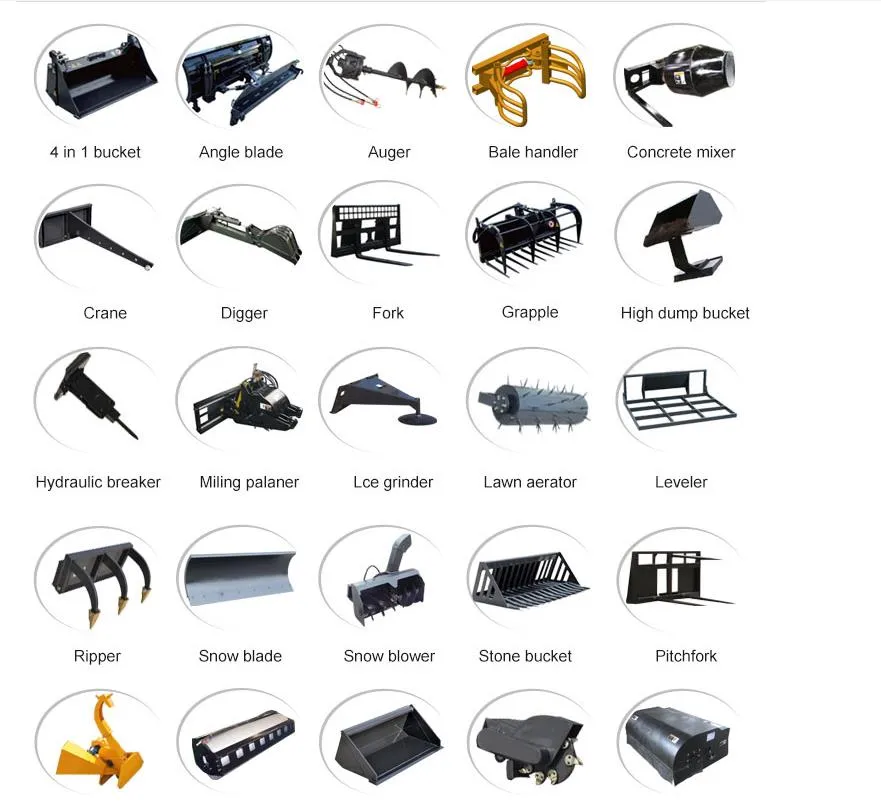

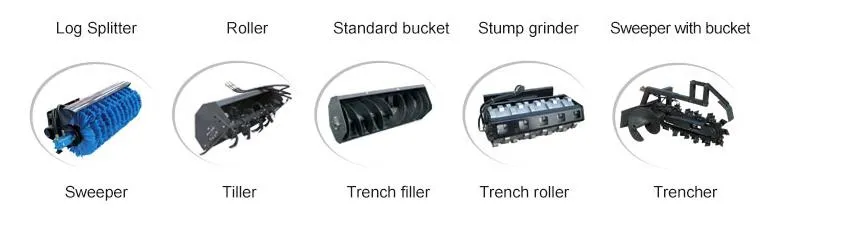

Various Available Attachments:
