Basic Information
Product Description
- ✔Luxury enlarged cabin with hydraulic forward tilting function for easy maintenance.
- ✔Removable cabin top canopy designed specifically for efficient container delivery.
- ✔Streamline enlarged fuel tank with tilting oil port for easy refilling.
- ✔High-quality hydraulic components for long working life and stable performance.
- ✔Oversize water tank and large radiator suitable for high-temperature operations.
- ✔Hydraulic steering and walking system with continuously variable transmission.
- ✔Air over hydraulic disc brakes on all 4 wheels for superior safety.
- ✔Multi-functional: Combines 180° wheel excavator and wheel loader capabilities.
- ✔Optional attachments: snow blade, road sweeper, hydraulic hammer, grapple, pallet fork, 4-in-1 bucket, and more.
- ✔Engine Options: Standard or DF Cummins 4BTA3.9-C100 as optional.
Product Parameters
| Main Performance Parameters of Backhoe Loader ASG388 |
| Overall Operating Weight |
8200KG |
Engine Model |
YC4A105Z-T20 |
| Transport Dimension (L*W*H) |
5920×2250×3770 mm |
Rated Power |
75KW |
| Bucket Capacity |
1.0 m³ |
Rated Speed |
2200 r/min |
| Loading Lifting Capacity |
2500KG |
Torque Converter |
YJ280 Single-stage |
| Bucket Dumping Height |
2742mm |
Max. Speed |
28Km/h |
| Max. Digging Depth |
4082/4500mm |
Tyre Model |
14-17.5/19.5L-24 |
| Backhoe Capacity |
0.3 m³ |
Steering Angle |
±36° |
| System Pressure |
12Mpa |
Swing Angle |
190° |
Detailed Photos

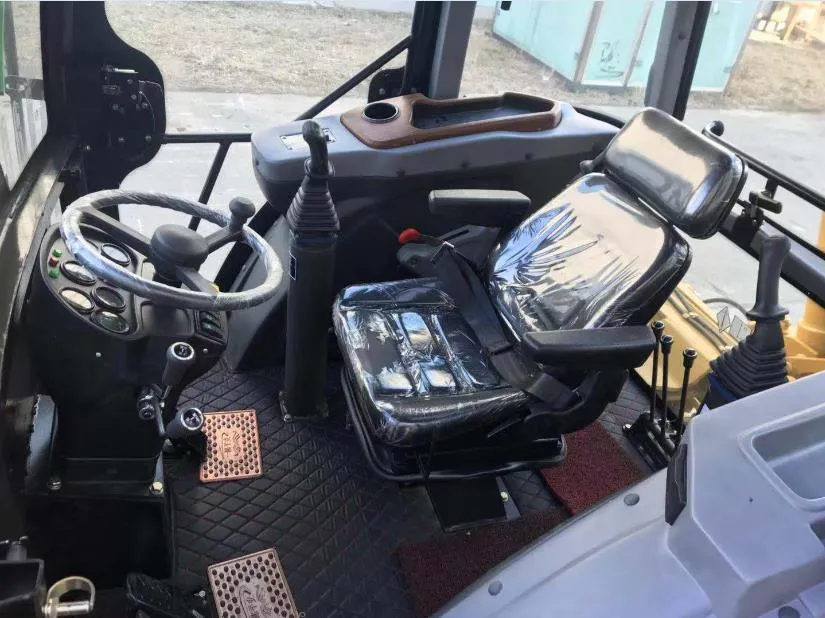

Luxury Cabin View

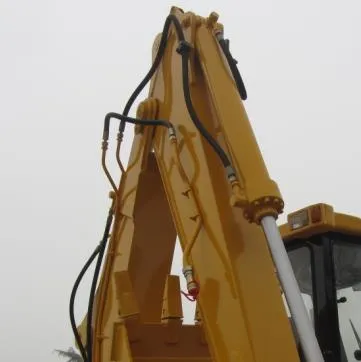

Pre-breaking Breaker Line

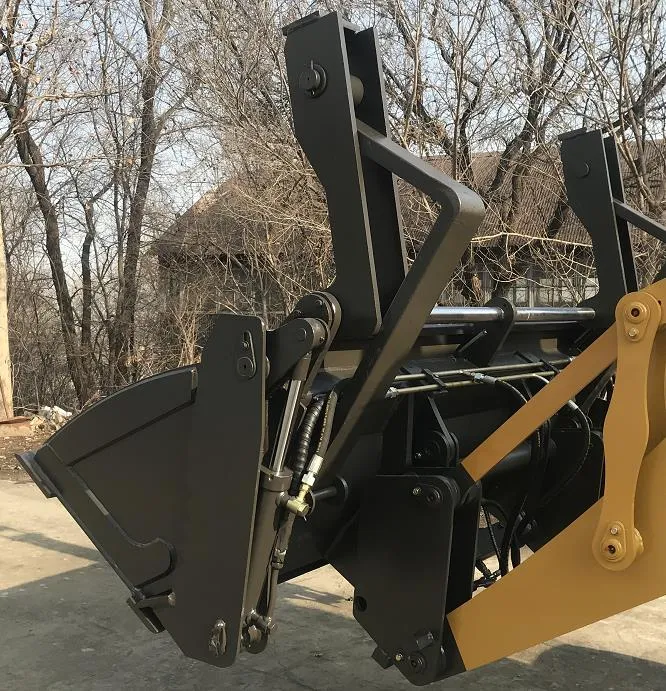

Versatile 6-in-1 Bucket

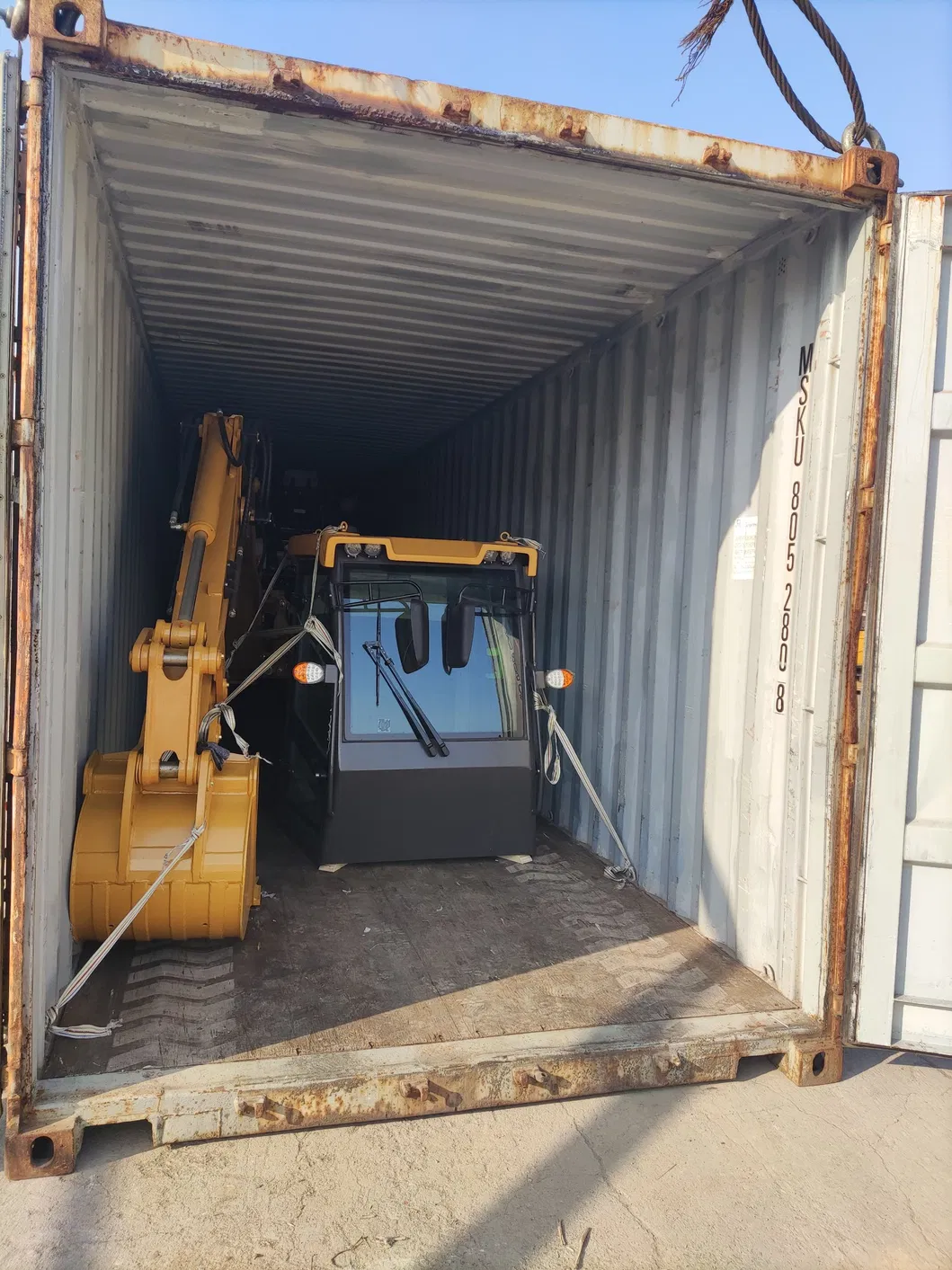

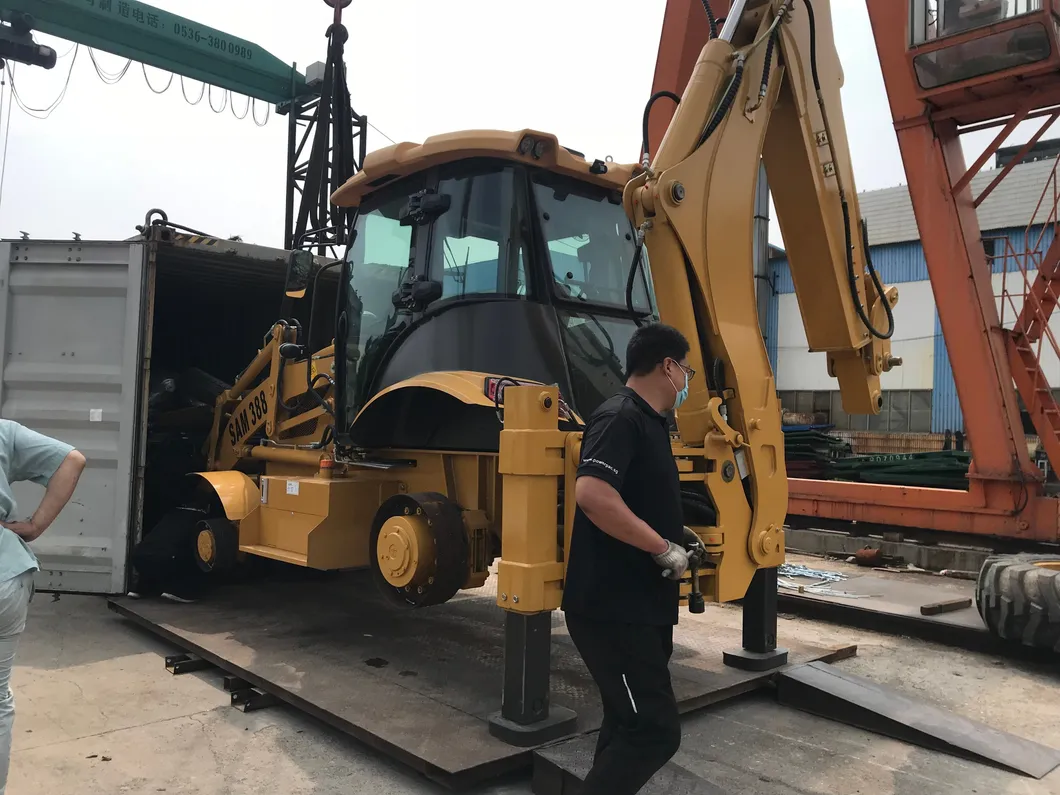

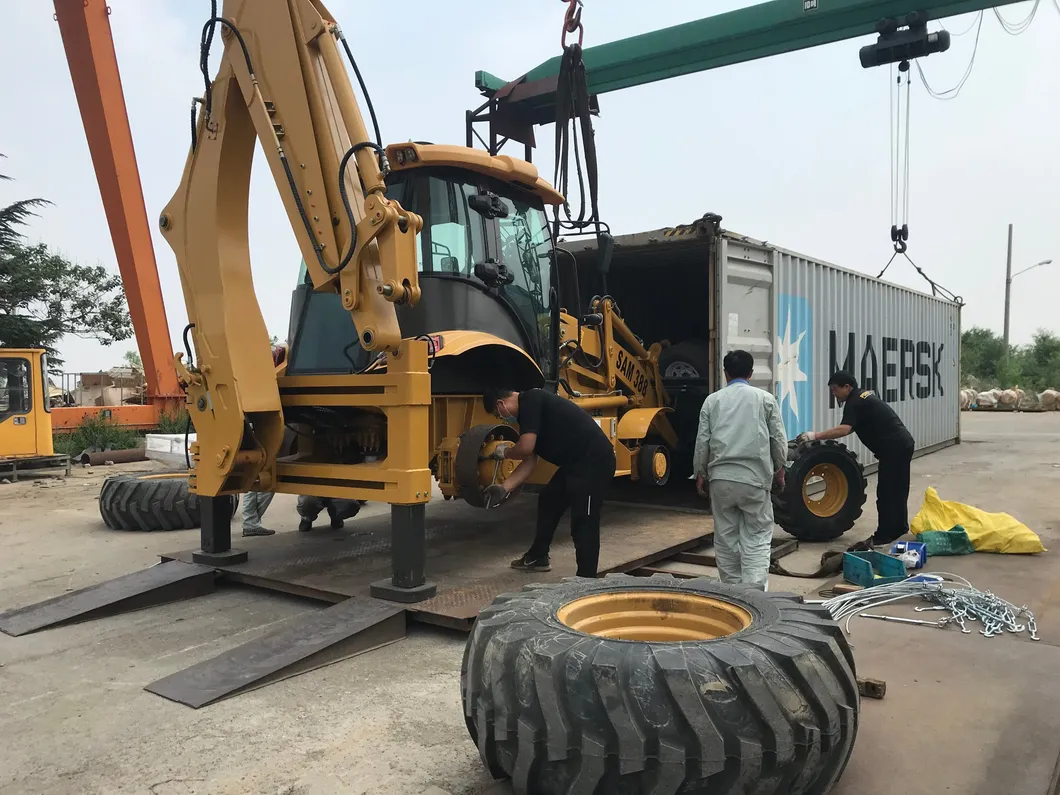

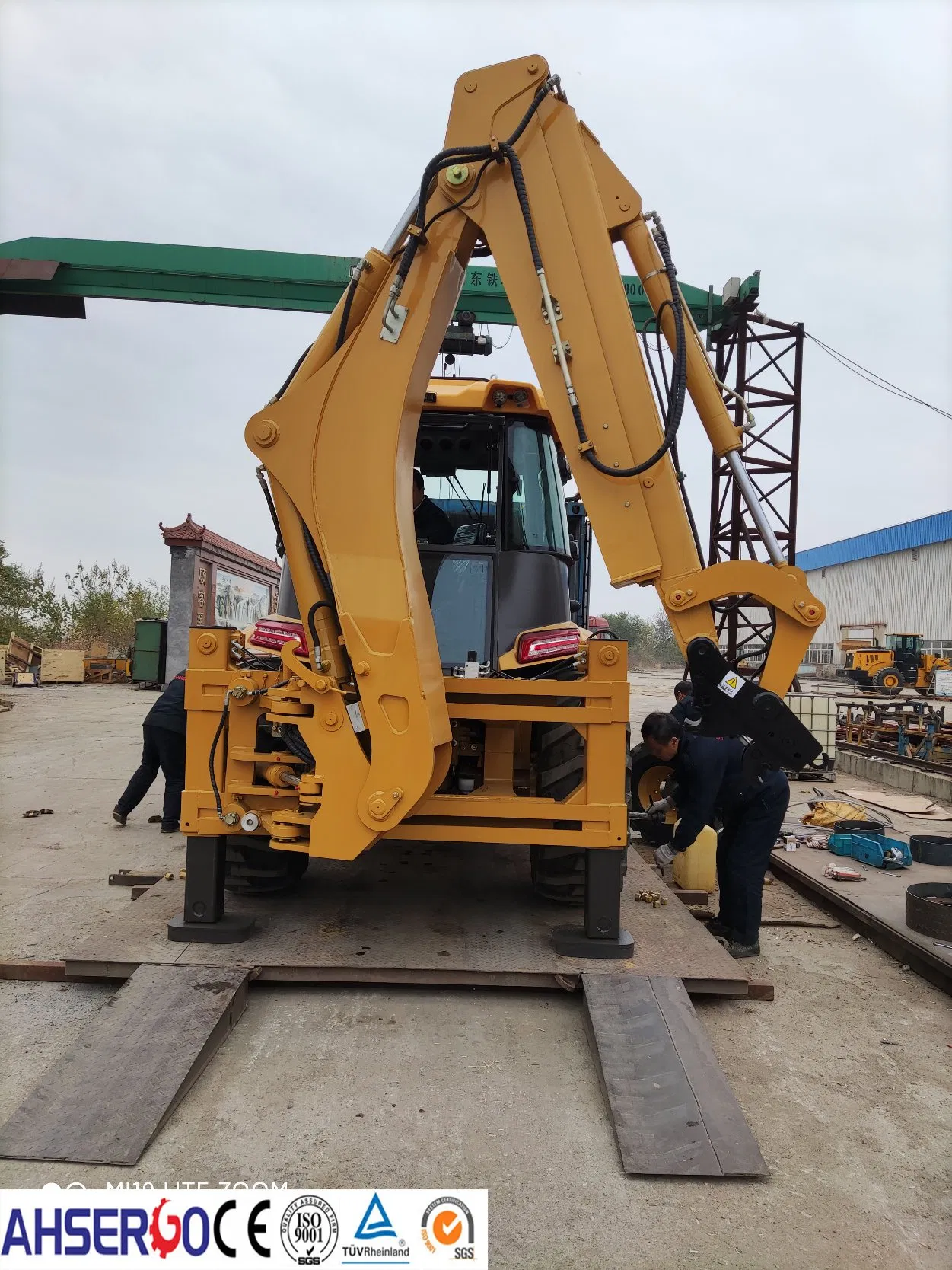

Packaging & Shipping
After Sales Service
Frequently Asked Questions
What is the operating weight and bucket capacity of the ASG388?
The ASG388 has an overall operating weight of 8200KG and comes with a 1.0 m³ loader bucket and a 0.3 m³ backhoe bucket.
Which engine options are available?
It is standard equipped with a 75KW YC4A105Z-T20 engine. A DF Cummins 4BTA3.9-C100 engine is also available as an optional upgrade.
What kind of attachments can be used with this backhoe loader?
It supports a wide range of optional attachments including snow blades, road sweepers, hydraulic hammers, pallet forks, and 4-in-1 or 6-in-1 buckets.
Is the machine suitable for hot climate operations?
Yes, the ASG388 is designed with an oversized water tank and a large radiator specifically to handle high-temperature environments efficiently.
What is the maximum digging depth?
The maximum digging depth of the backhoe is between 4082mm and 4500mm depending on the specific configuration.
Does the cabin support easy maintenance?
Absolutely. The luxury enlarged cabin features a hydraulic forward tilting function, allowing for easy access to components for maintenance.
