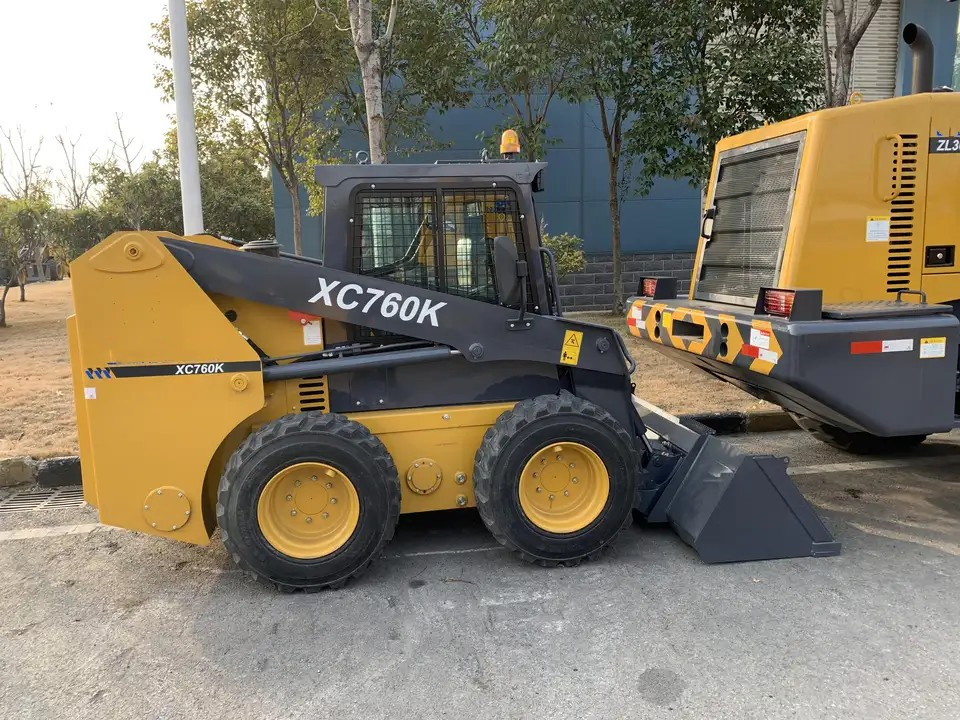

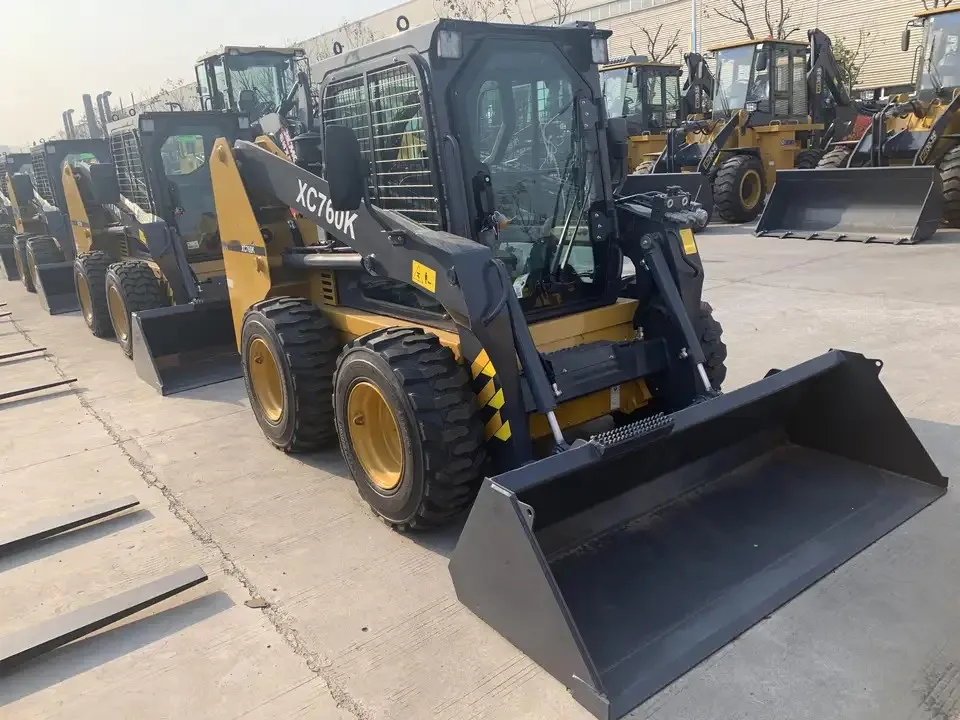

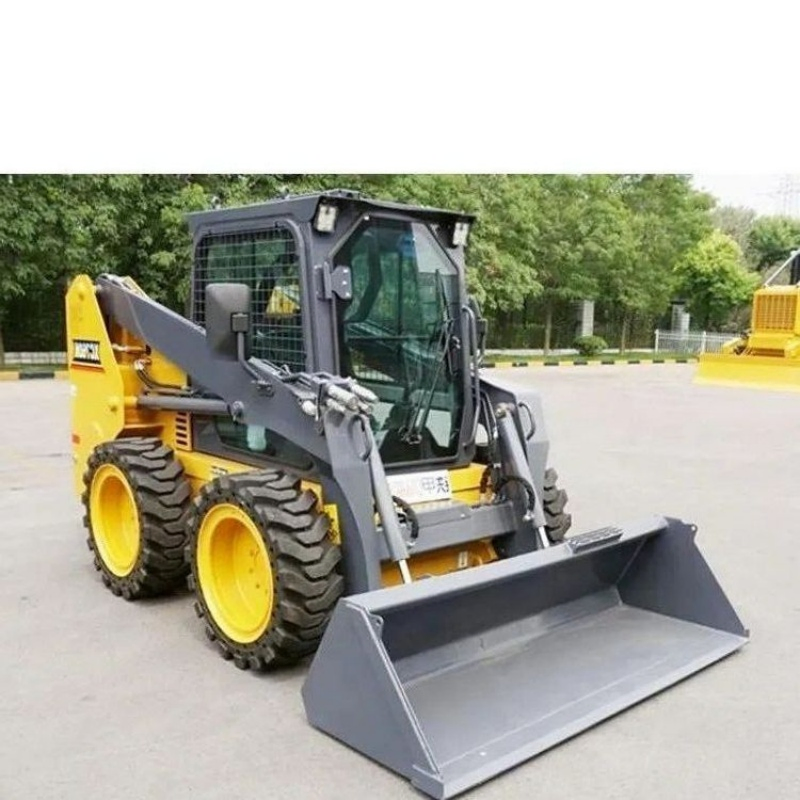

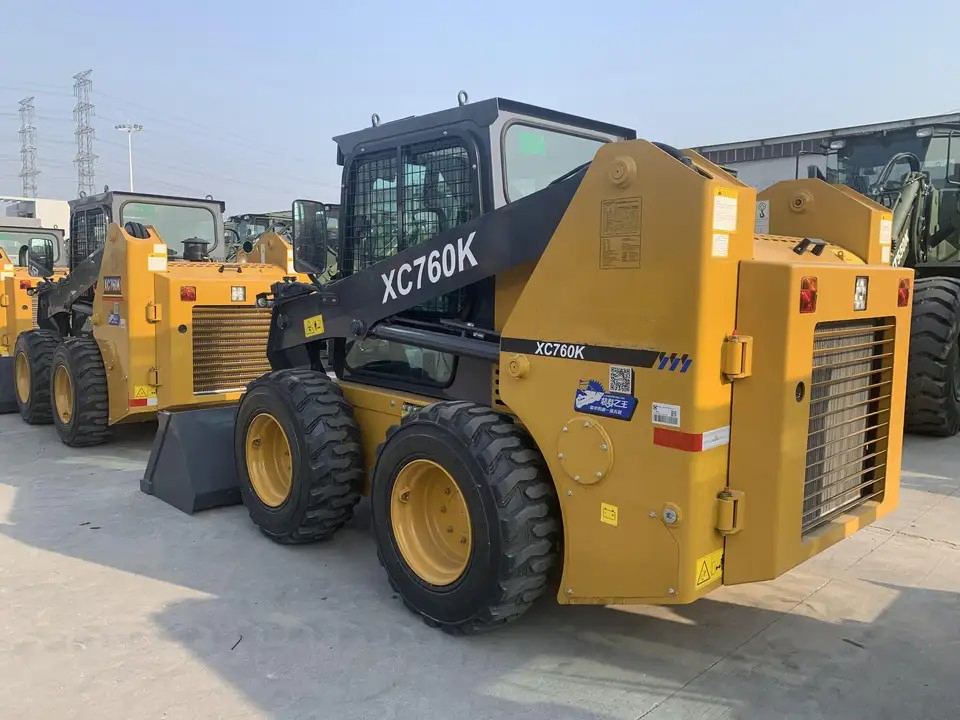

XC760K with strong power and rich attachments, the XG skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
* The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.
* The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.
The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realize reasonable stress distribution.

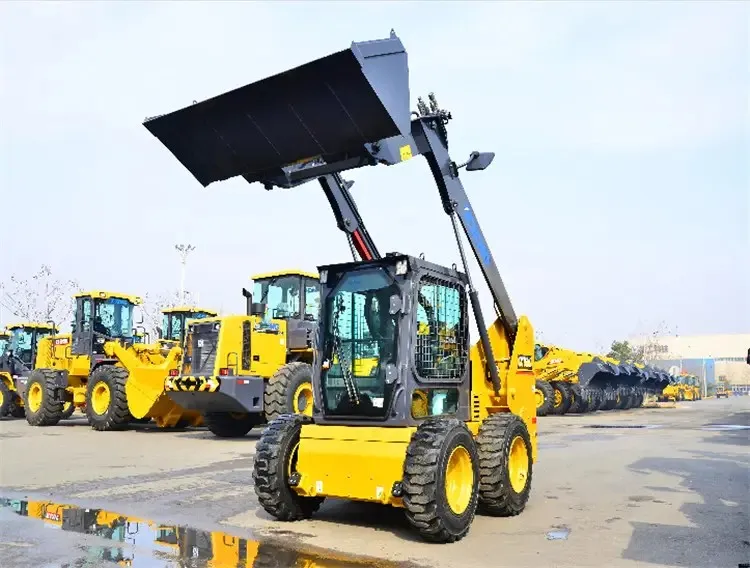

The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

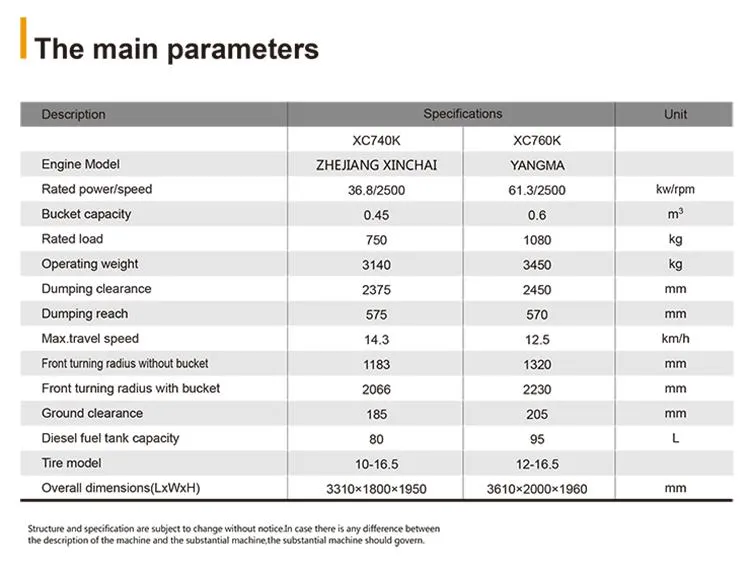

| Description | Unit | XC760K Data |
|---|---|---|
| Rated load | kg | 1080 |
| Tipping load | kg | 2160 |
| Operating weight | kg | 3450 / 3700 / 3650 |
| Maximum breakout force | kN | 22 |
| Engine Model | - | YANMAR 4TNV98T / Weichai WP4G80E231 |
| Rated power | Hp/kw | 82.2/61.3 or 80/60 |
| Maximum speed | Km/h | 12.5 |
| Maximum operating height | mm | 4180 |
| Bucket capacity | m³ | 0.6 |
| Diesel tank capacity | L | 95 |
