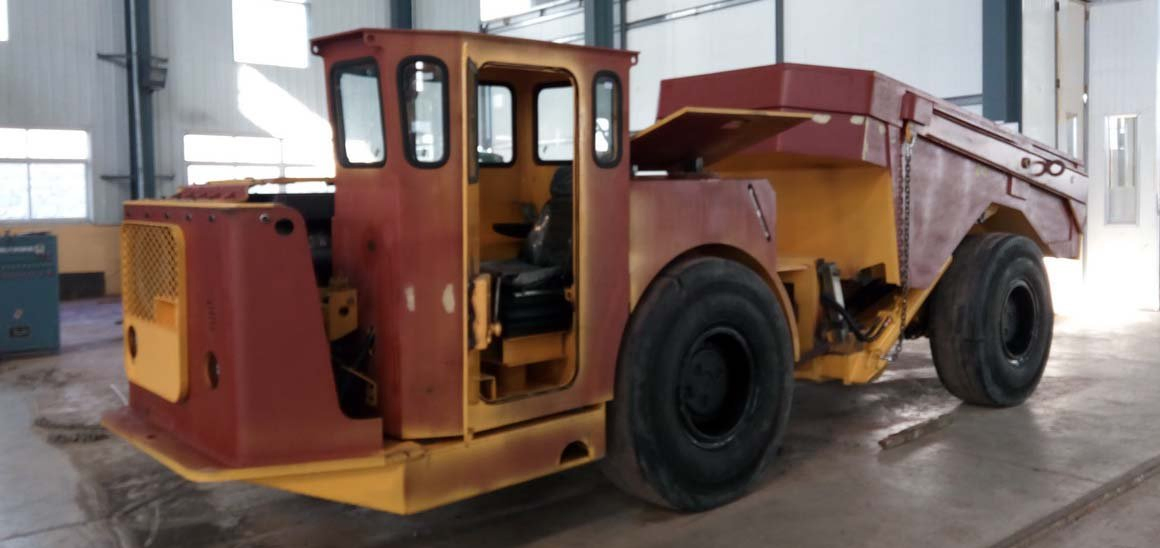

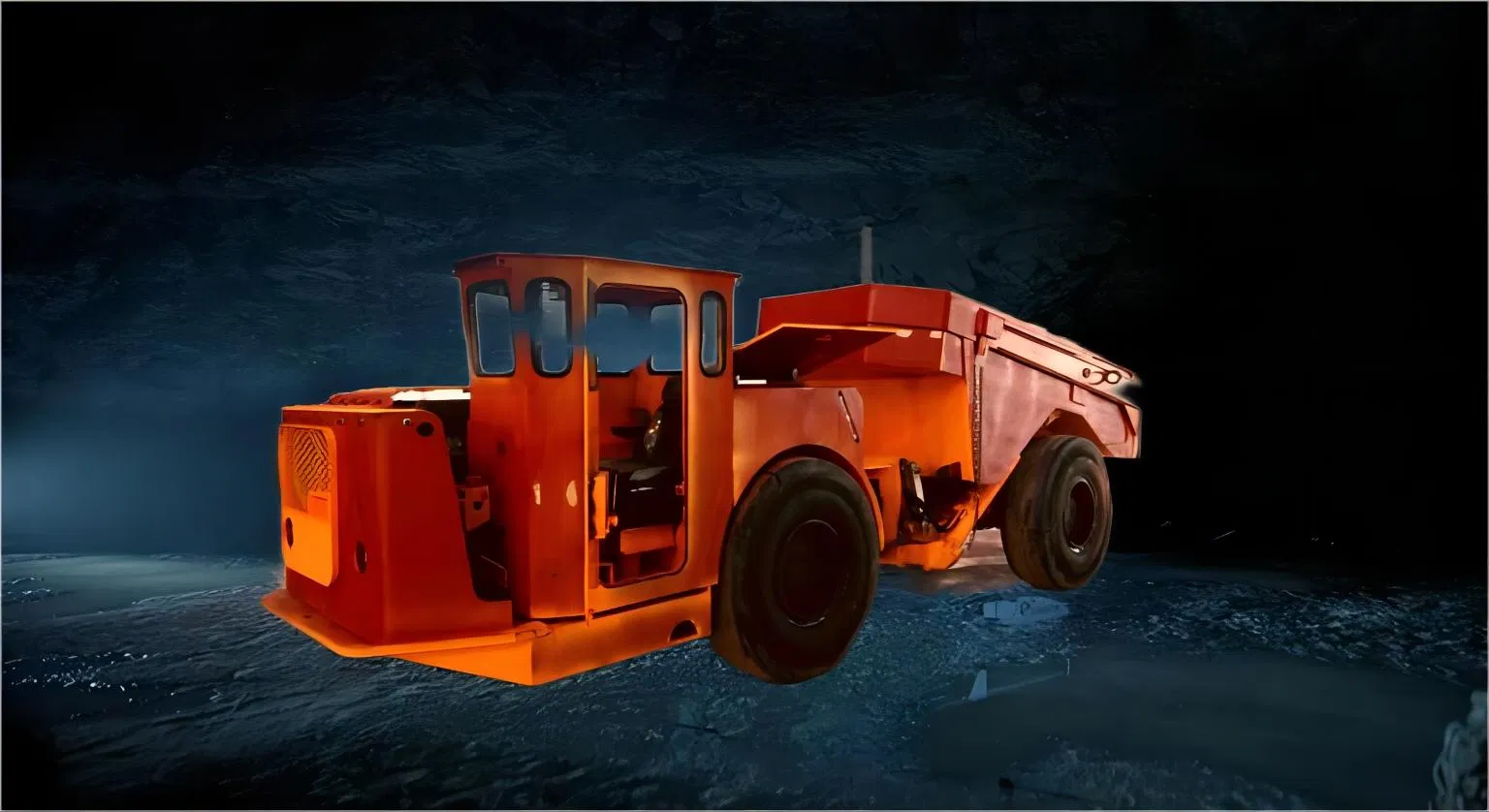

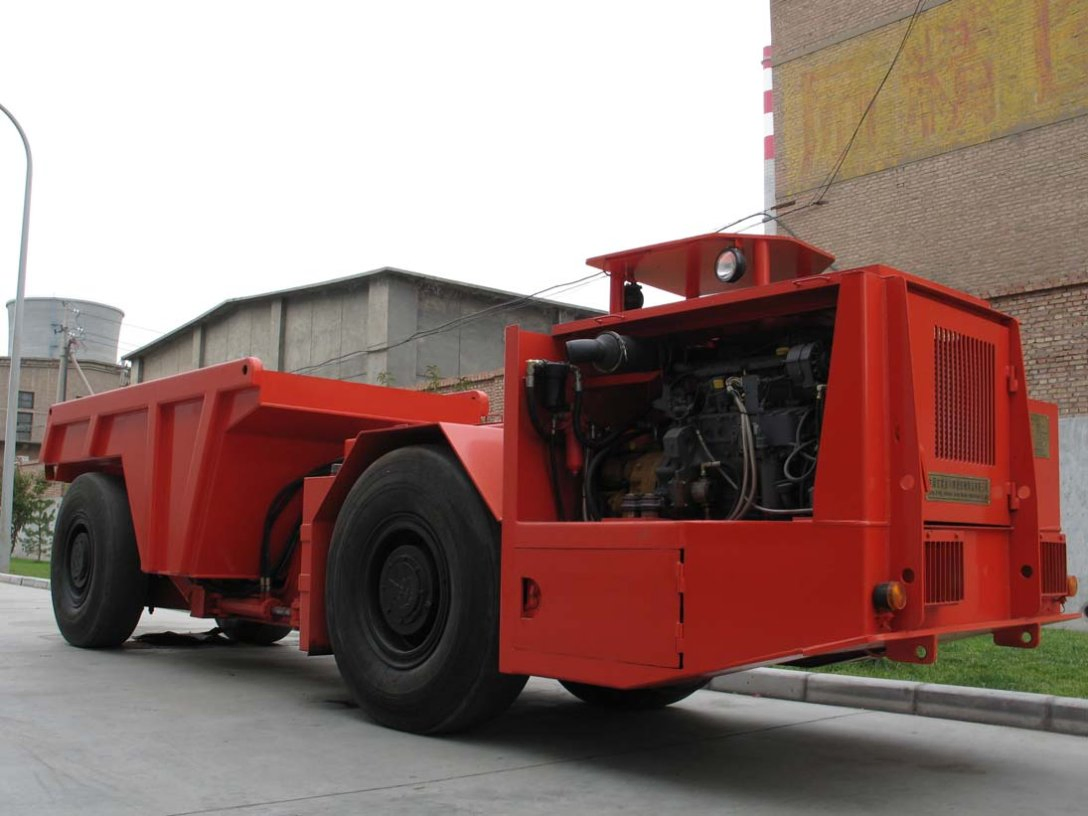

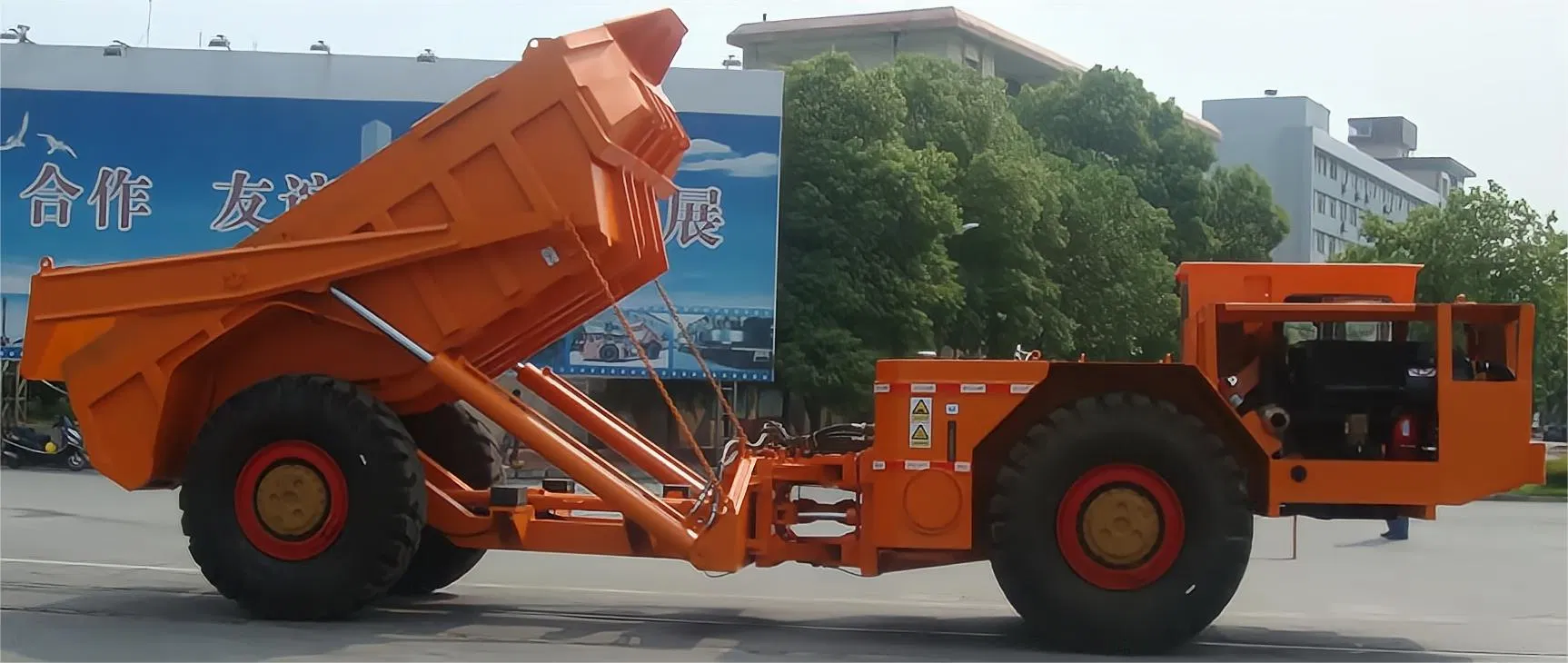

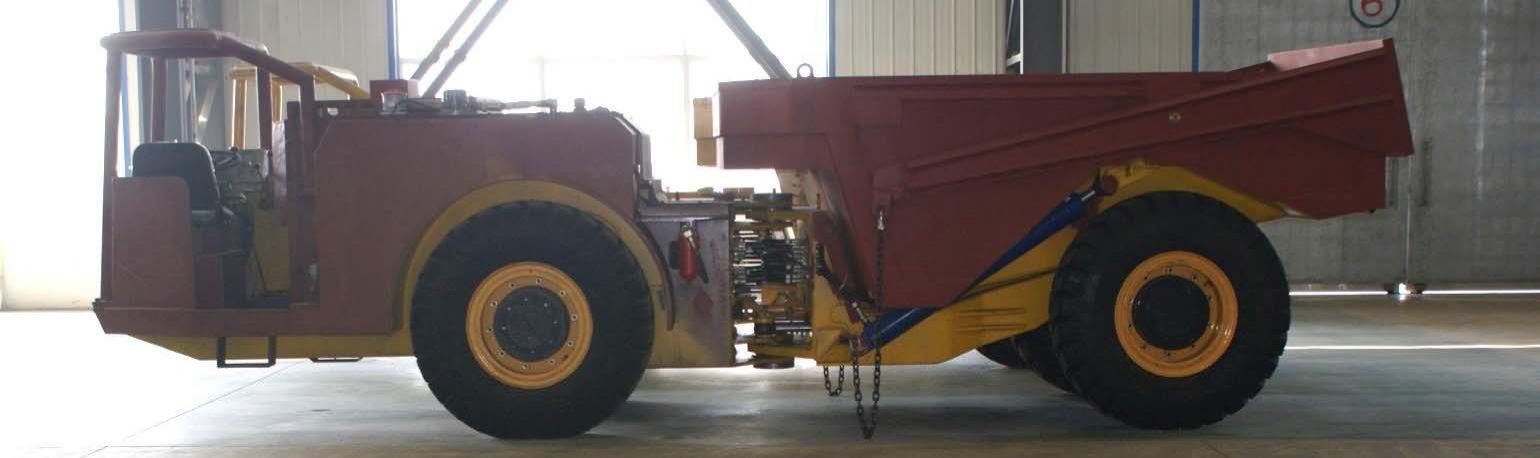

12ton Diesel Engine Centrally Articulated Underground Mine Dump Truck

1 / 5

12ton Diesel Engine Centrally Articulated Underground Mine Dump Truck

Customization:	Available
After-sales Service:	2 Years Quality Warranty
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

TU312

Transmission Type

Manual

Power

Diesel

Load Capacity

11-20t

Emission Standard

Euro 3

Drive Wheel

4×4

Engine Capacity

280L

Seats

≤5

Horsepower

251-350hp

Condition

New

Specification

7587x2040x2320 mm

Production Capacity

150 Units/Year

Product Description

Underground Mining Truck TU 312 Technical Data

Payload 12 ton Dump truck for Underground Mining application
New generation of Drive-Train product lines

12ton Diesel Engine Underground Mine Dump Truck

Utility Vehicle Model	TU312
Overall Dimension	7587x2040x2320 mm
Engine Power/Speed	112 Kw/2300 rpm
Chassis Rated load	12 ton
Transmission	6WG130 ZF series power shift pump drive group 3 speed forward and reverse with C330 Torque converter, 4 wheel drive
Fuel Tank Volume	112 L
Axle	Planetary type Dana 113 series Load end axle
Tyre	12.00-20 TL 20 / 14.00-24 TL 24
Service Brake	Hydraulically powered dual-circuit oil immerse multidisc brake in both axles
Parking Brake	Spring applied hydraulically release fail-safe type brake. Brake testing possible from Cabin
Optional Attachments	Lifting platforms (Hydro Pipe jack), Crane 12Knm for lifting, Grapple for crane, Sliding safety Roof, Lube Tank, Miner Carrier

Product Features

Front Drive/Side Drive Optional: Offers flexibility in operational configuration based on mine requirements.

Advanced Braking System: Standard differential with SAHR Posi-stop brake and extra cooling system to ensure reliability for both service and parking functions.

Emergency Safety: Posi-stop Spring applied hydraulic release ensures emergency braking performance using the same reliable system.

Modular Design: 3D Modular auxiliary strength inspection and a box-design rear framework ensure maximum durability for rough underground tasks.

Cooling & Load Control: Enforced cooling systems and high-quality charging valves ensure safety and performance during load-decline.

Frequently Asked Questions

What is the payload capacity of the TU 312?

The TU 312 underground mining truck has a rated chassis load capacity of 12 tons, specifically designed for heavy-duty underground transport.

What type of transmission is used in this truck?

It utilizes a 6WG130 ZF series power shift transmission with a C330 torque converter, providing 3 speeds for both forward and reverse movement.

Does the truck come with a warranty for the braking system?

The truck features a highly reliable Posi-stop spring-applied hydraulic release system (SAHR) which functions as both a service and parking brake for maximum safety.

Is the TU 312 suitable for narrow underground tunnels?

Yes, with overall dimensions of 7587x2040x2320 mm, it is engineered for the tight spaces and rough terrain typically found in underground mining operations.

Can I customize the attachments for this model?

Yes, we offer several optional attachments including lifting platforms, 12Knm cranes, grapples, lube tanks, and adjustable safety roofs to meet specific project needs.
