1. Genuine engine, transmission box and axles imported overseas have strong power, low fuel consumption and high working efficiency.
2. The pump controlling hydraulic system and load-sensitive steering system enhance system stability, quicken trouble shooting and save more energy.
3. The application of exclusive traveling control strategy and fault analysis system makes the overall vehicle more intelligent.
4. 6×6 drive and friction-disk type inter wheel/inter-axle differential locks take passing performance, reliability and riding stability to a higher level.
5. ROPS & FOPS that meet ISO standards are equipped in driver's cab, which enlarges interior space, broadens field of view range, secures driver's working safety and increases comfort level of driving experience.
6. Driver's cab and engine hood are both flipping designs, and the cab is integrated with a centralized lubrication system, all these designs make maintenance more convenient and more efficient.

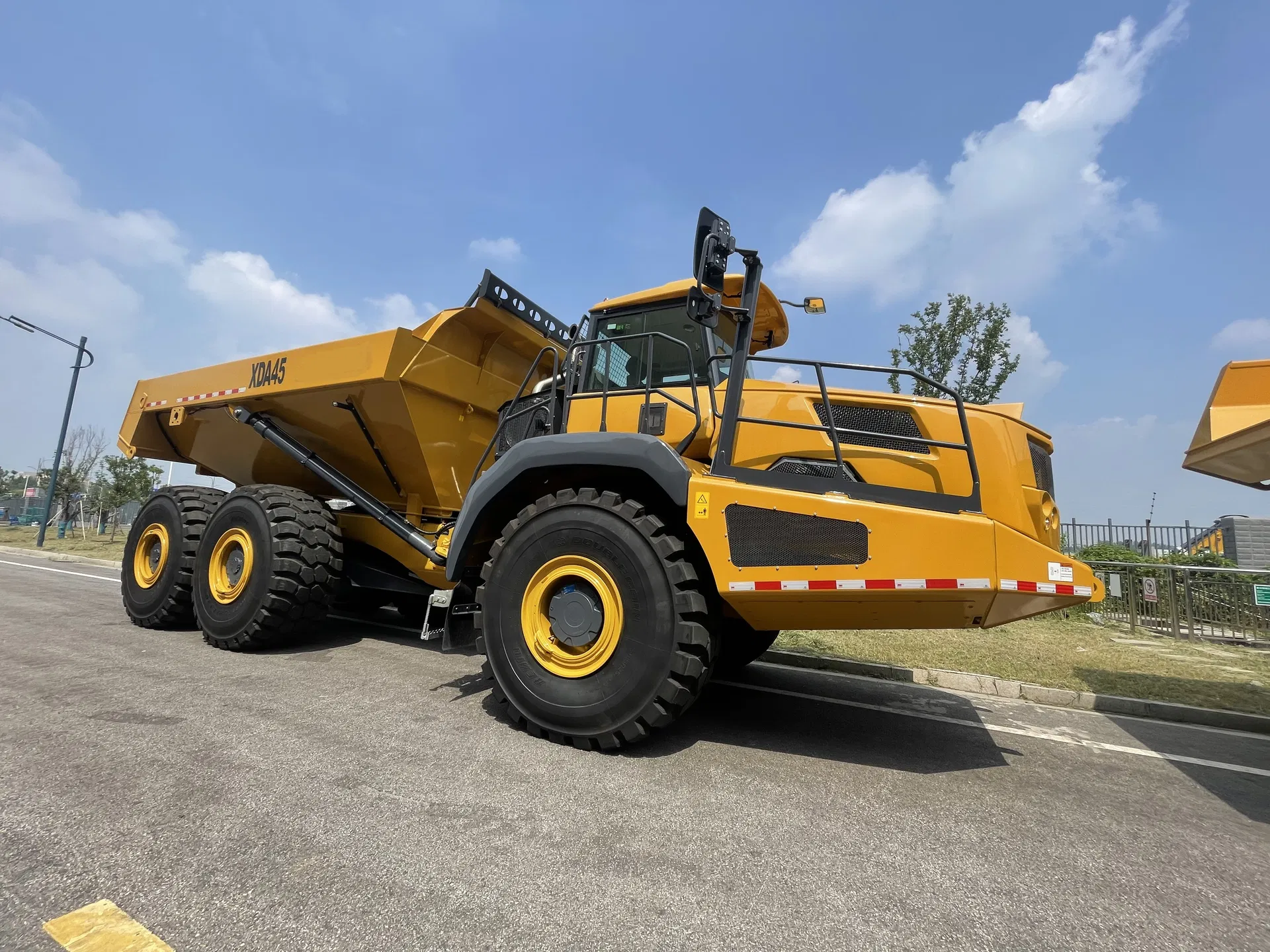

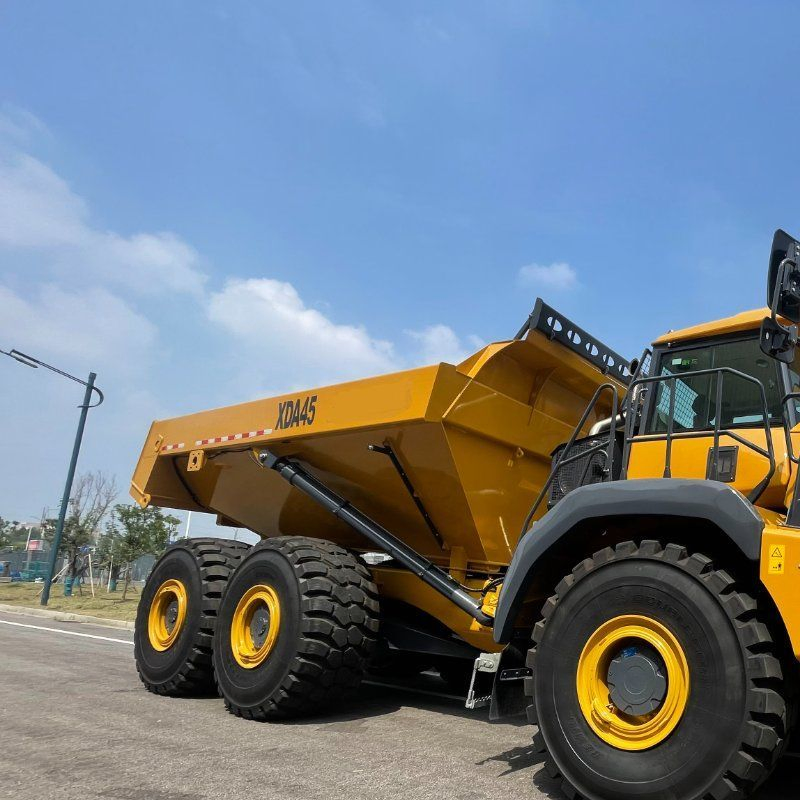

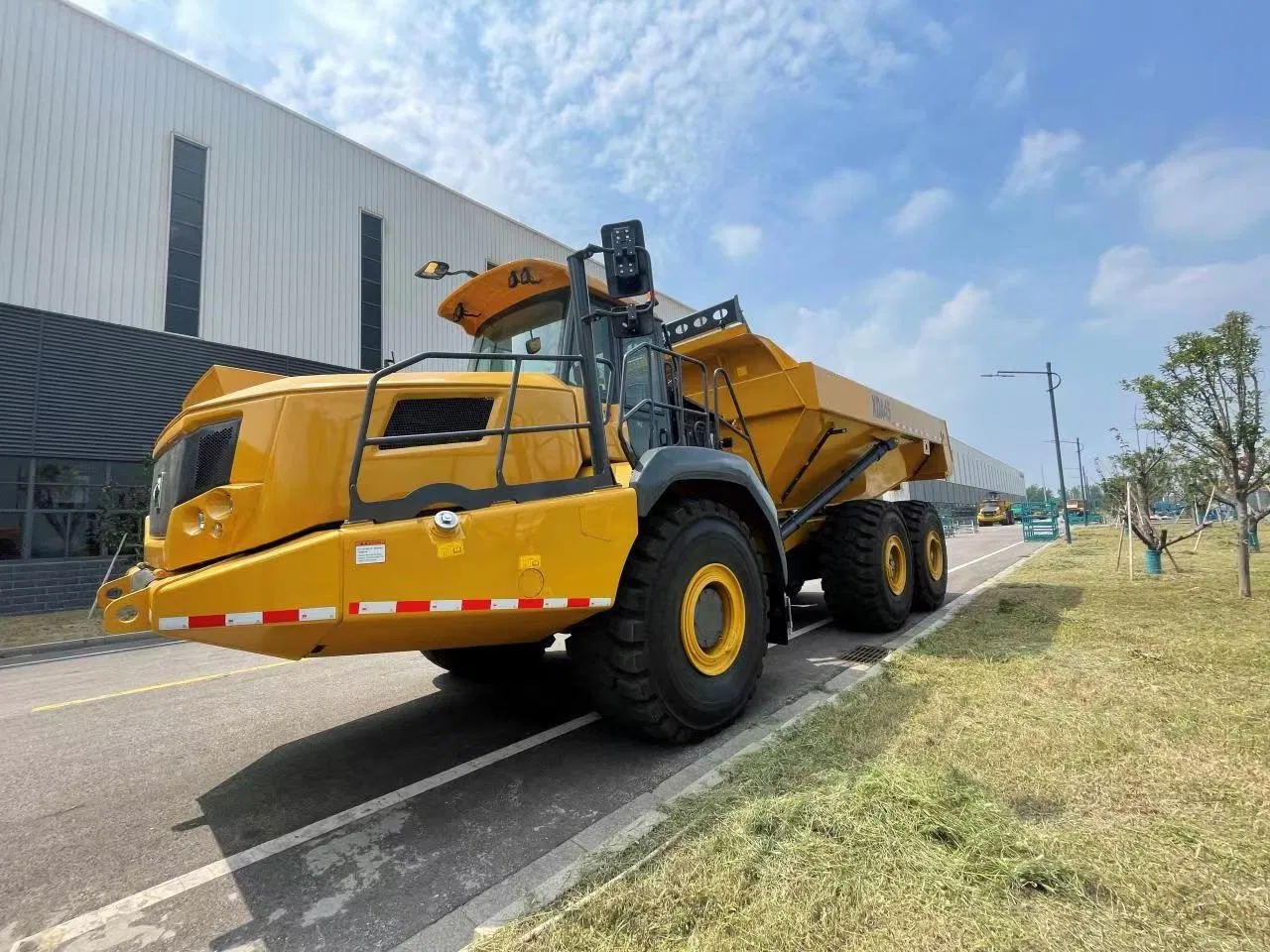

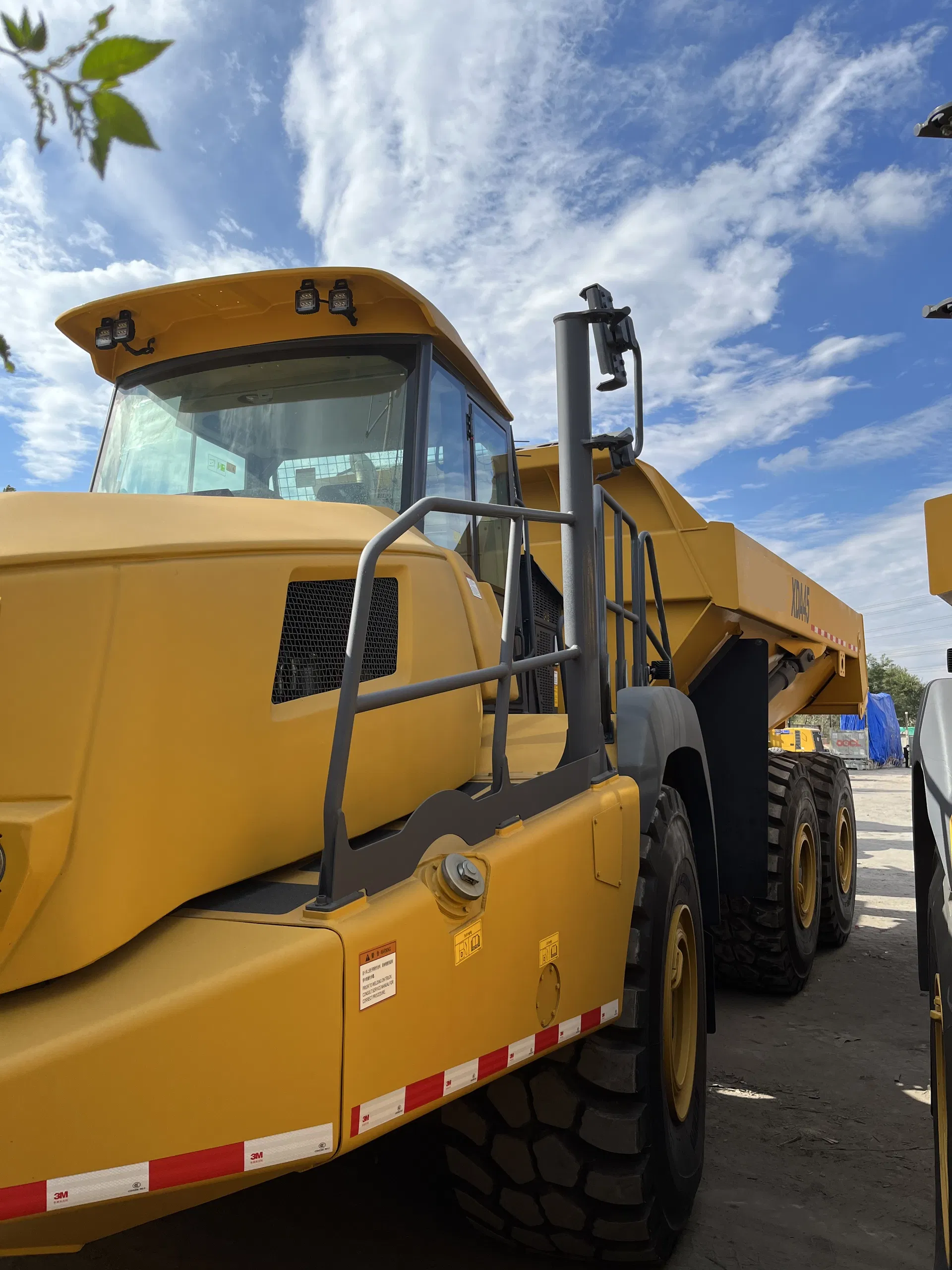

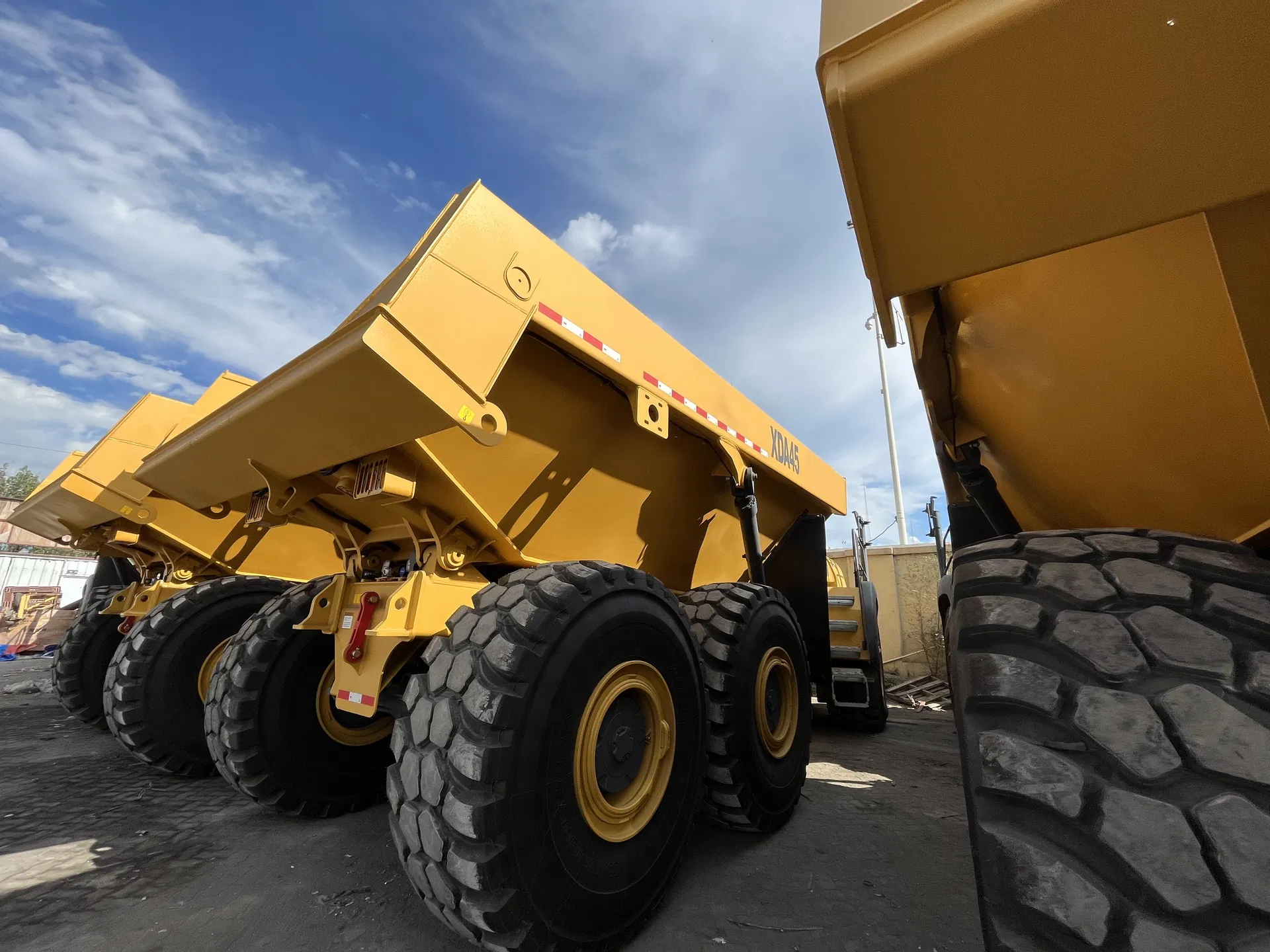

XDA45 articulated dump truck is designed for use in mining, quarry, water conservation, harbour, brown field and construction sites. It has a powerful drivetrain, superior hauling performance, excellent manoeuvrability and efficiency making it suitable for the wide range of applications. The product is designed to run continuously in an operating environment from -25ºC to 40ºC and meets Euro 3 emission standard.
| Model | XDA45 |
| Rated Payload | 41t |
| Machine Weight | 34t |
| Struck Capacity (SAE) | 19.5m³ |
| 2:1 Heaped Capacity (SAE) | 25m³ |
| Engine Rated Power | Banz engine 350kw@1800rpm |
| Max Torque | 2300N.m@1300rpm |
| Drive | 6x6 |
| Tire | 29.5R25 |
| Max Speed | 51km/h |
| Max Gradeability | 45% |
| Overall Dimensions | 11070*3950*3846mm |
Frequently Asked Questions
Q1: What is the maximum load capacity of the XDA45?
The XDA45 articulated dump truck has a rated payload of 41 tons and a heaped capacity (2:1 SAE) of 25m³.
Q2: What type of engine and drive system does it use?
It is equipped with a high-performance engine providing 350kw@1800rpm and features a robust 6x6 drive system for superior off-road performance.
Q3: In what environments can this truck operate?
The XDA45 is designed for continuous operation in harsh environments, with a temperature range from -25ºC to 40ºC.
Q4: Are the driver's cabs safe?
Yes, the driver's cab is equipped with ROPS (Roll-Over Protective Structure) and FOPS (Falling Object Protective Structure) that meet international ISO standards.
Q5: How easy is the maintenance for the XDA45?
Maintenance is highly convenient due to flipping designs for the cab and engine hood, plus an integrated centralized lubrication system.
Q6: What are the primary applications for this dump truck?
It is ideal for mining, quarrying, water conservation projects, harbour operations, and large-scale construction sites.
