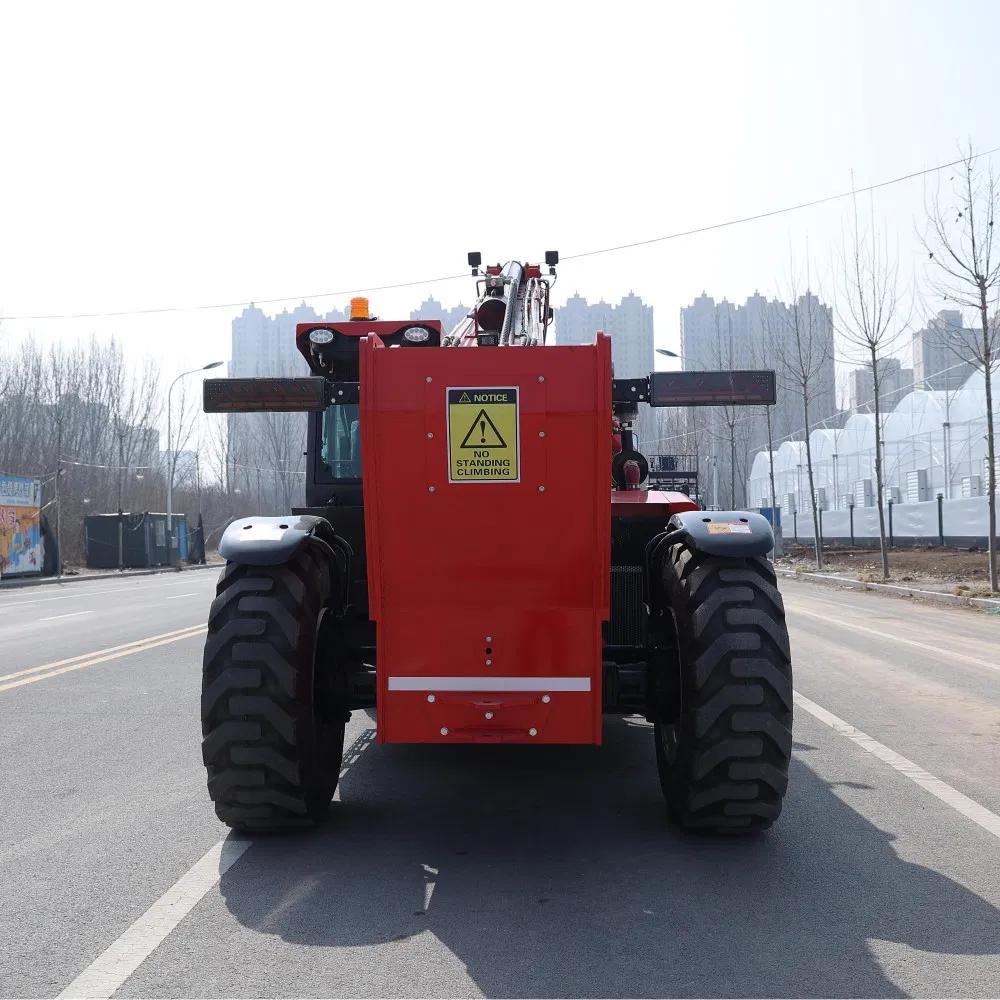

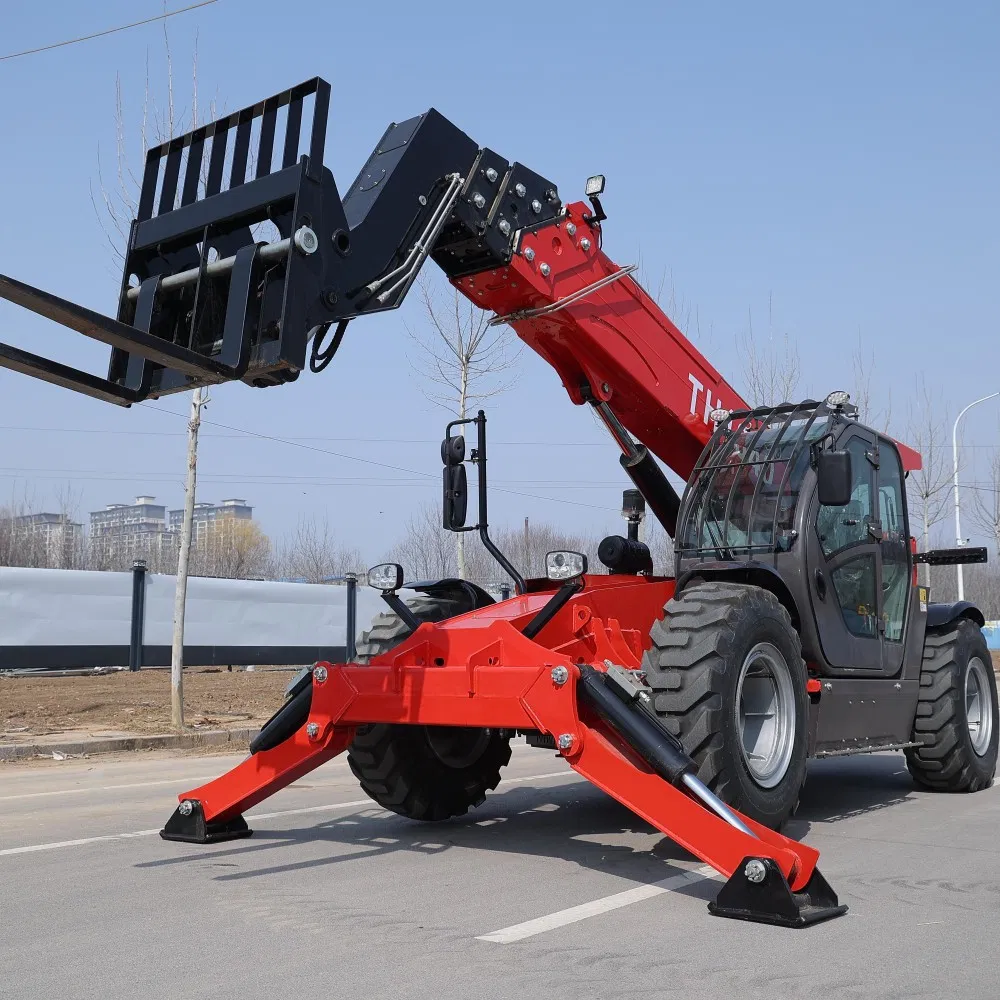

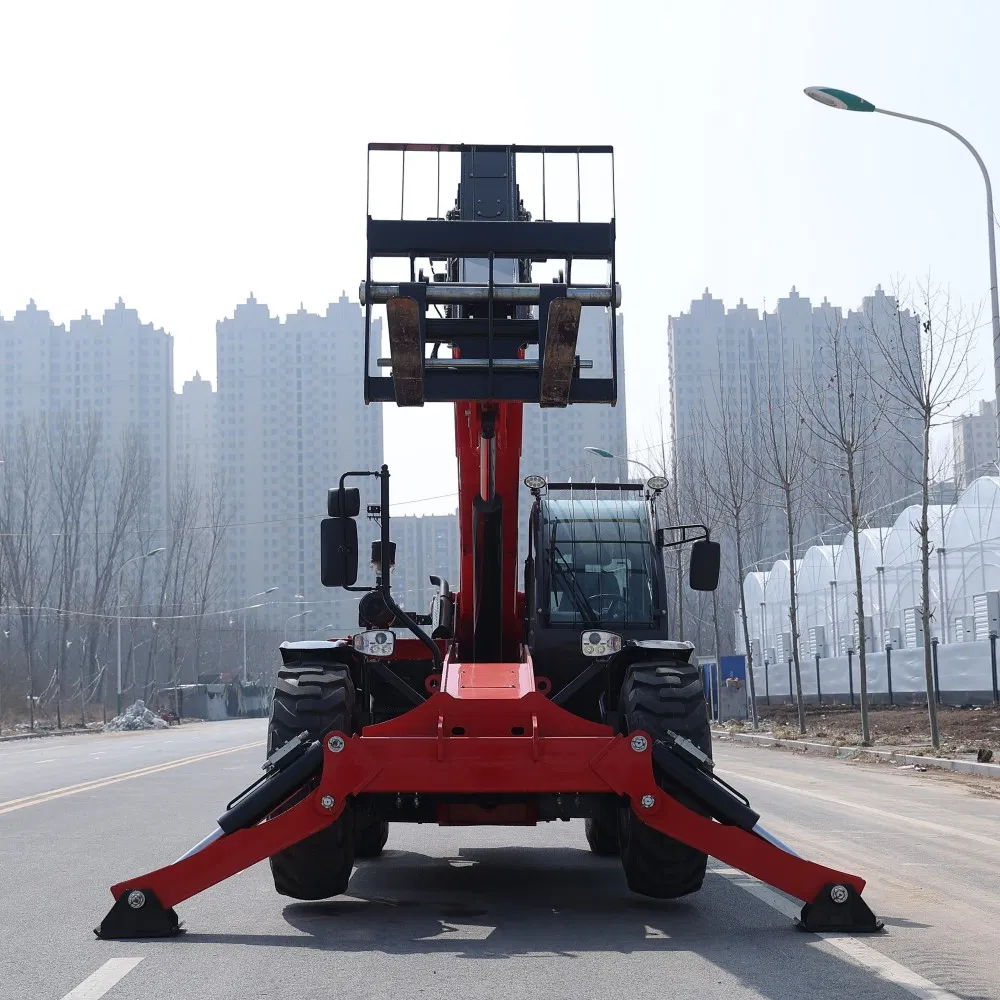

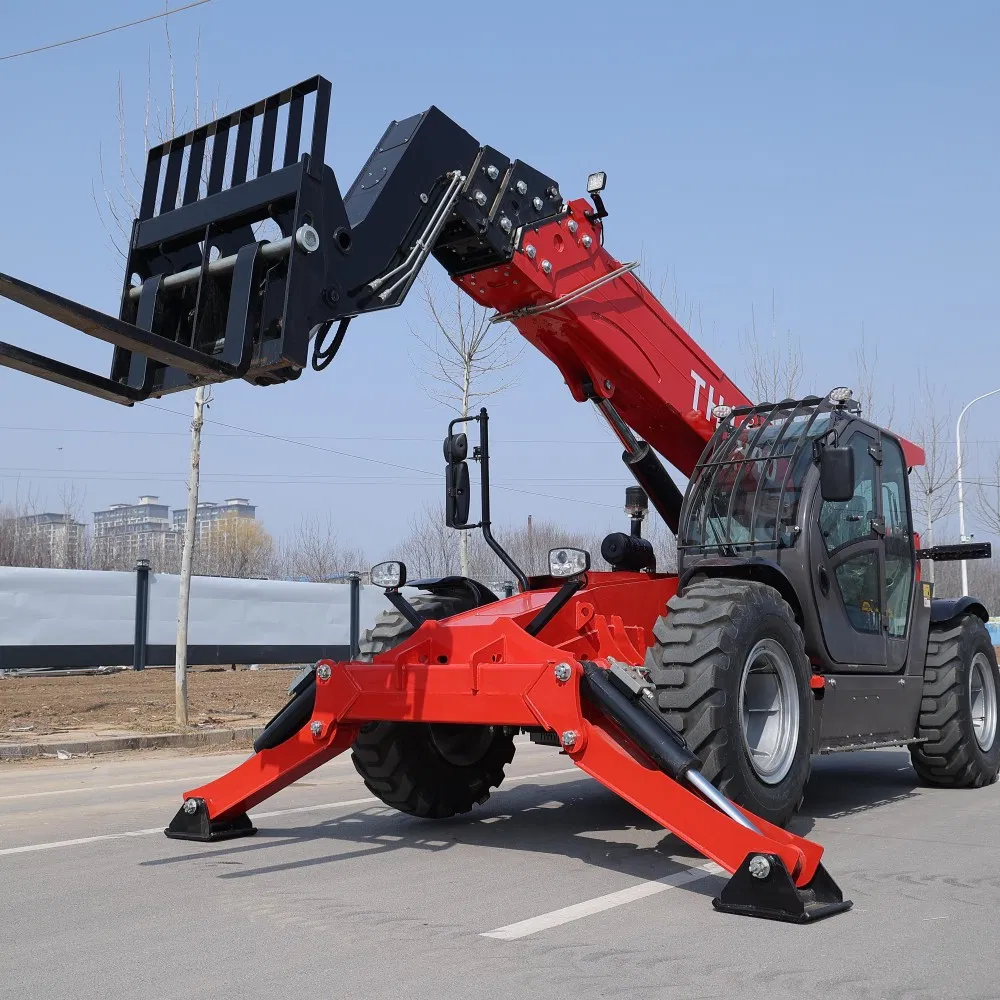

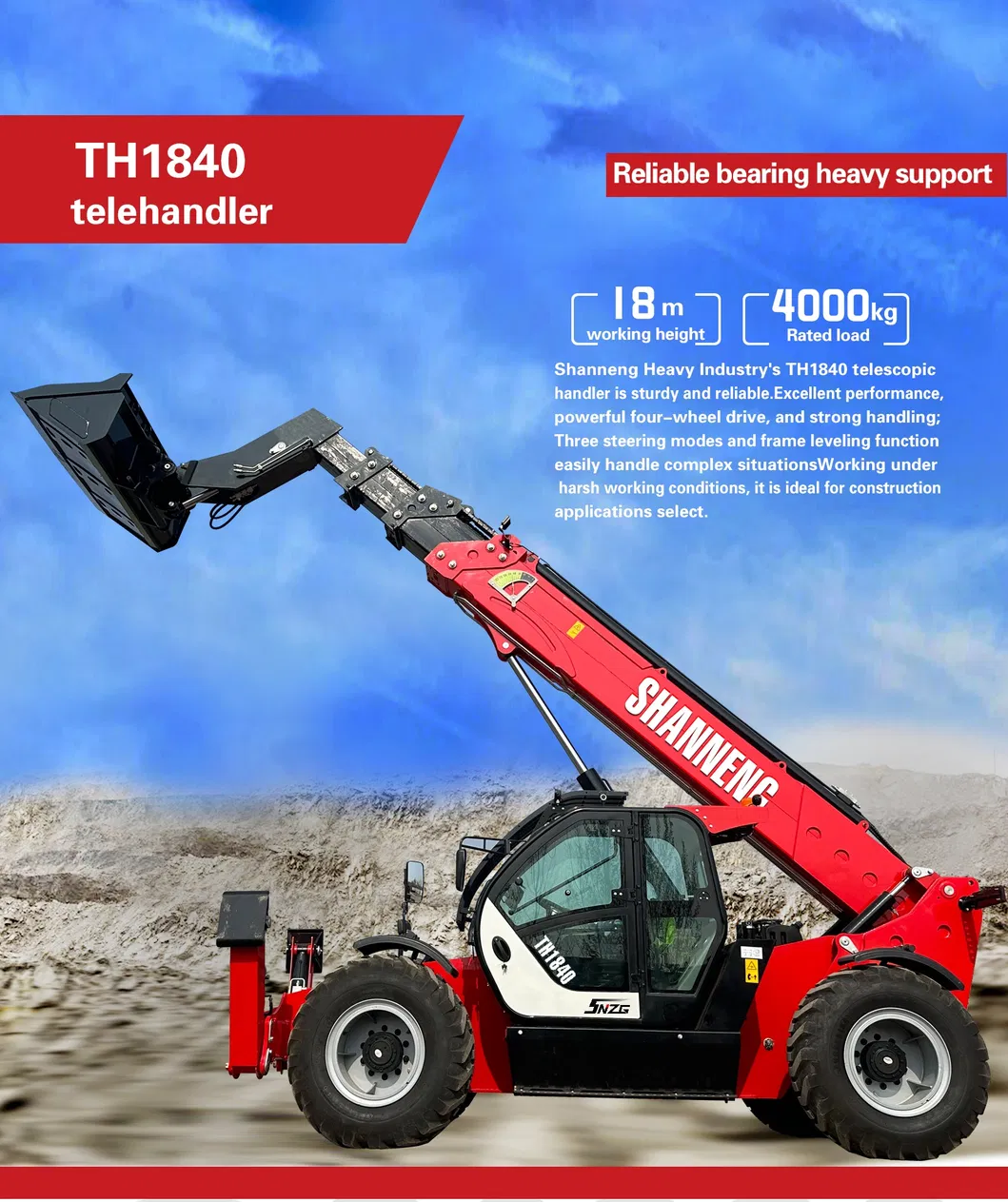

Diesel-Powered Telehandler with 18m Reach & 360° Rotating Boom

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

📑 Basic Information

Model NO.	TH1840
Certification	ISO, CE
Condition	New
Rated Load	3-6t (4000kg Rating)
Transmission	Hydraulic
Walking Mode	Wheeled (4WD 2WD Crab Steering)
Max. Working Height	18m
Max. Horizontal Extension	13.1m
Engine Power	103kw Diesel Engine
Material	900L High-Strength Low-Alloy Steel
Dimensions	6.28 x 2.442 x 2.677 (m)
Weight	12500kg

🚀 Product Description

The telehandler is a versatile mechanical equipment designed for efficient goods transportation. Thanks to its flexibility and multi-purpose design, it significantly improves operational efficiency in various environments.

Narrow Space Operation: Telescopic arm allows working in confined or limited areas.
Versatility: Capable of telescopic, rotating, and lifting operations for diverse cargo types.
Advanced Safety: Equipped with stability and safety control systems to protect operators and cargo.
Cost Efficient: Reduces manual labor needs and operational intensity.
Wide Application: Ideal for ports, logistics, warehousing, mining, oil & gas, farms, and airports.

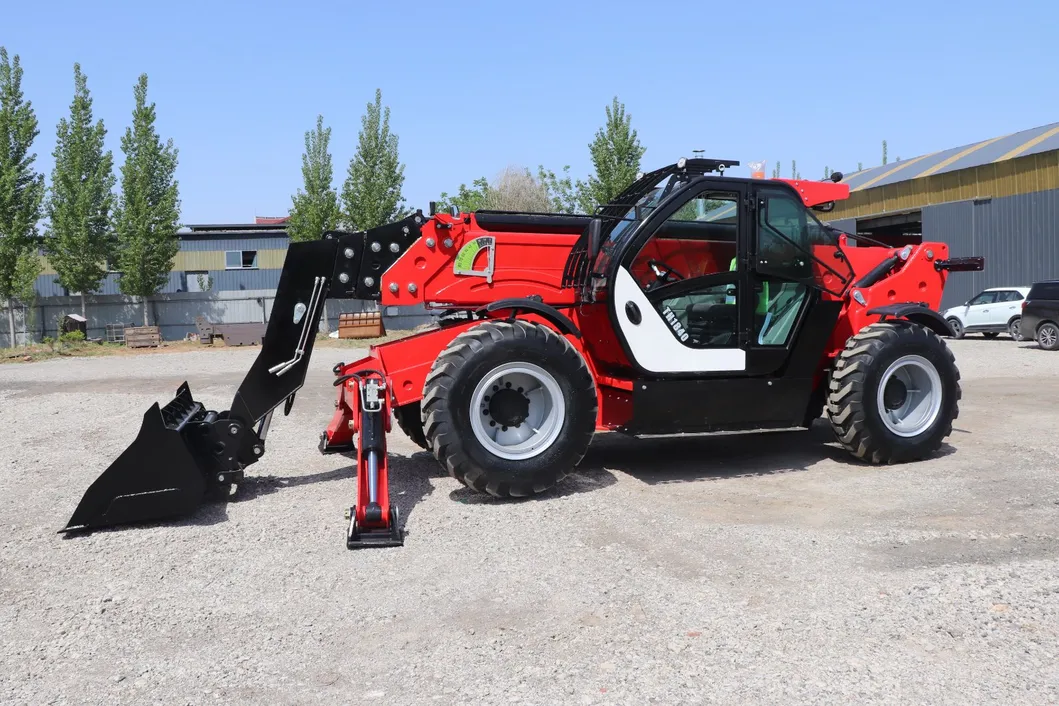

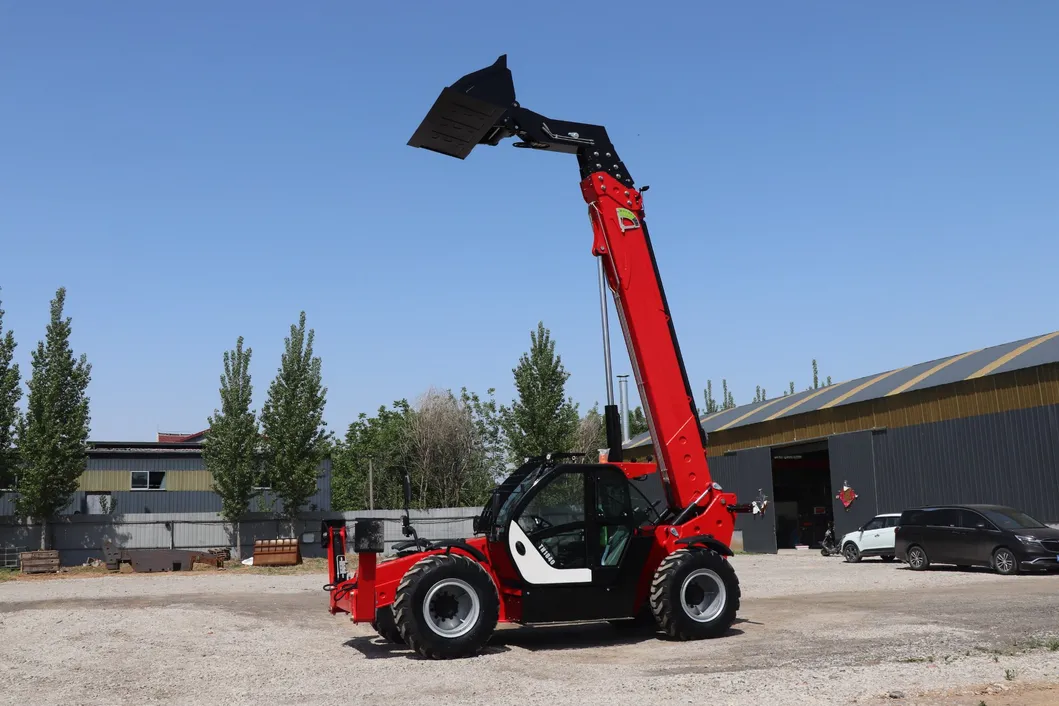

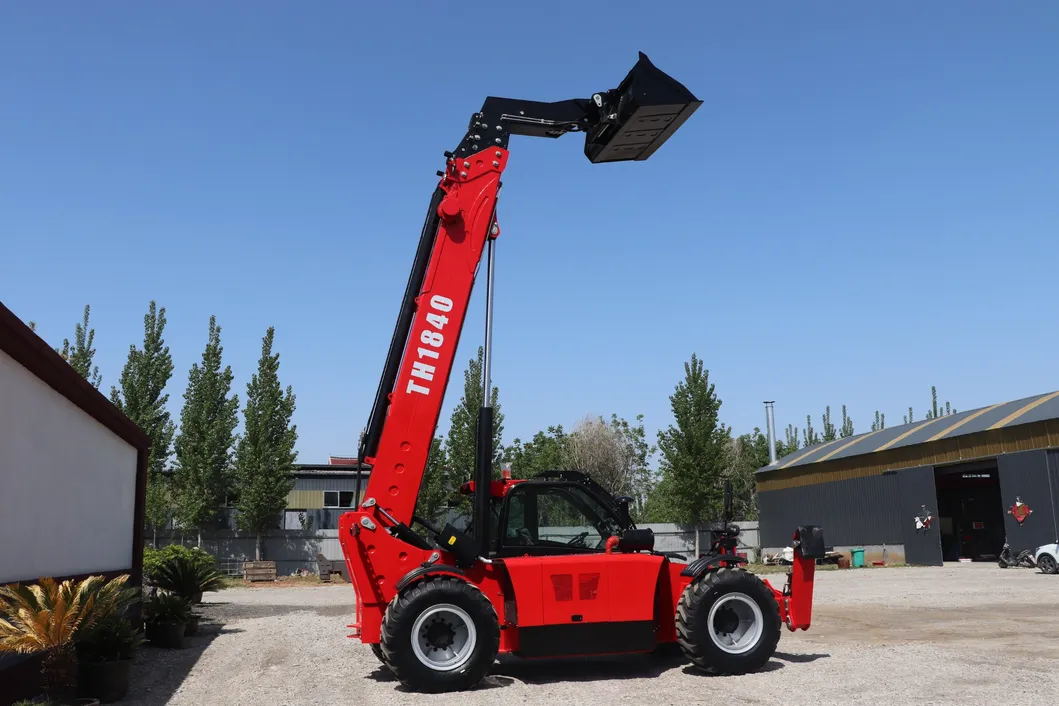

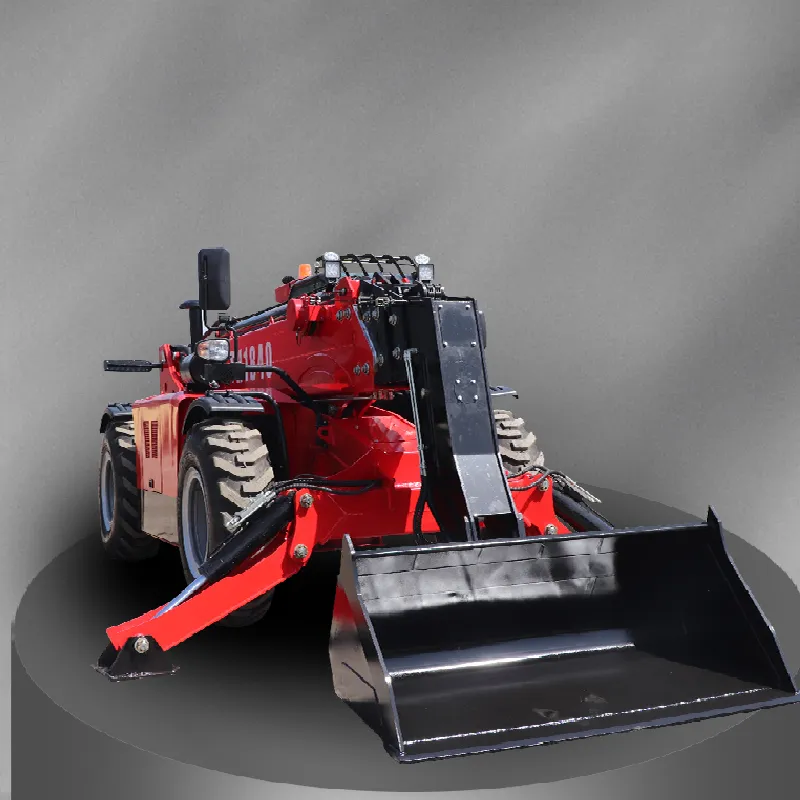

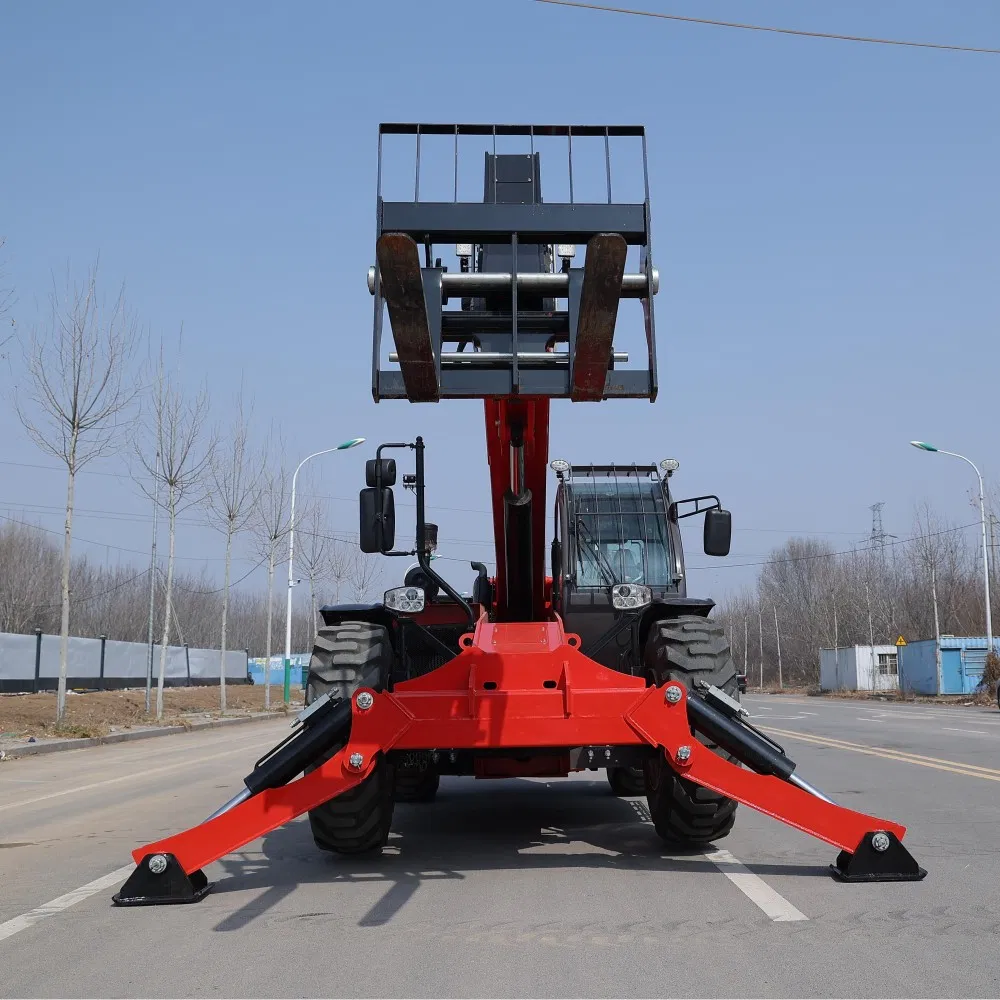

📸 Detailed Photos

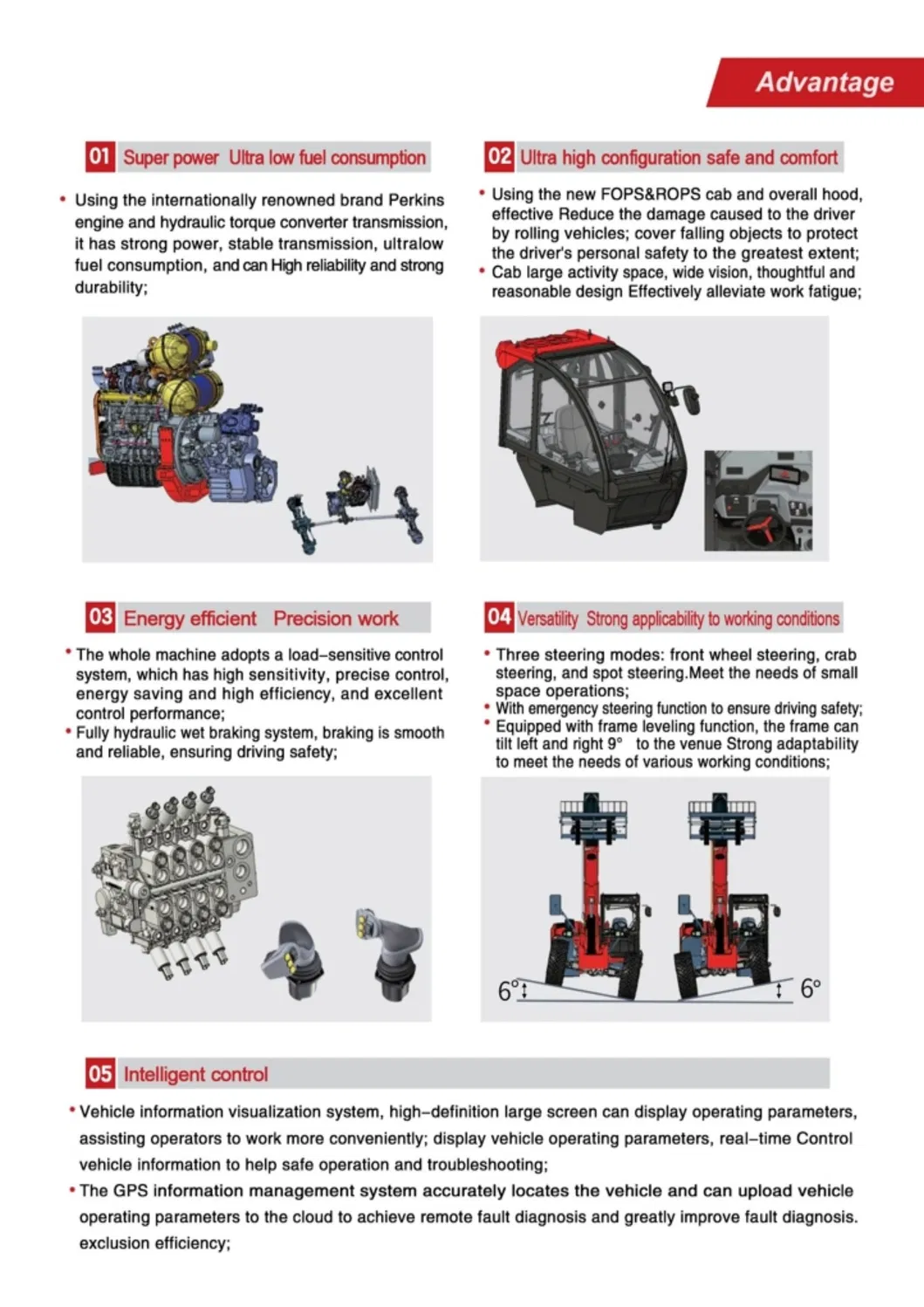

Key Advantages:

Flexible telescope and height adjustment for different container sizes.
Multiple attachments (forks, etc.) to meet diverse operational needs.
Utilizes 900L high-strength low-alloy steel (900 MPa yield strength) for heavy-load durability.

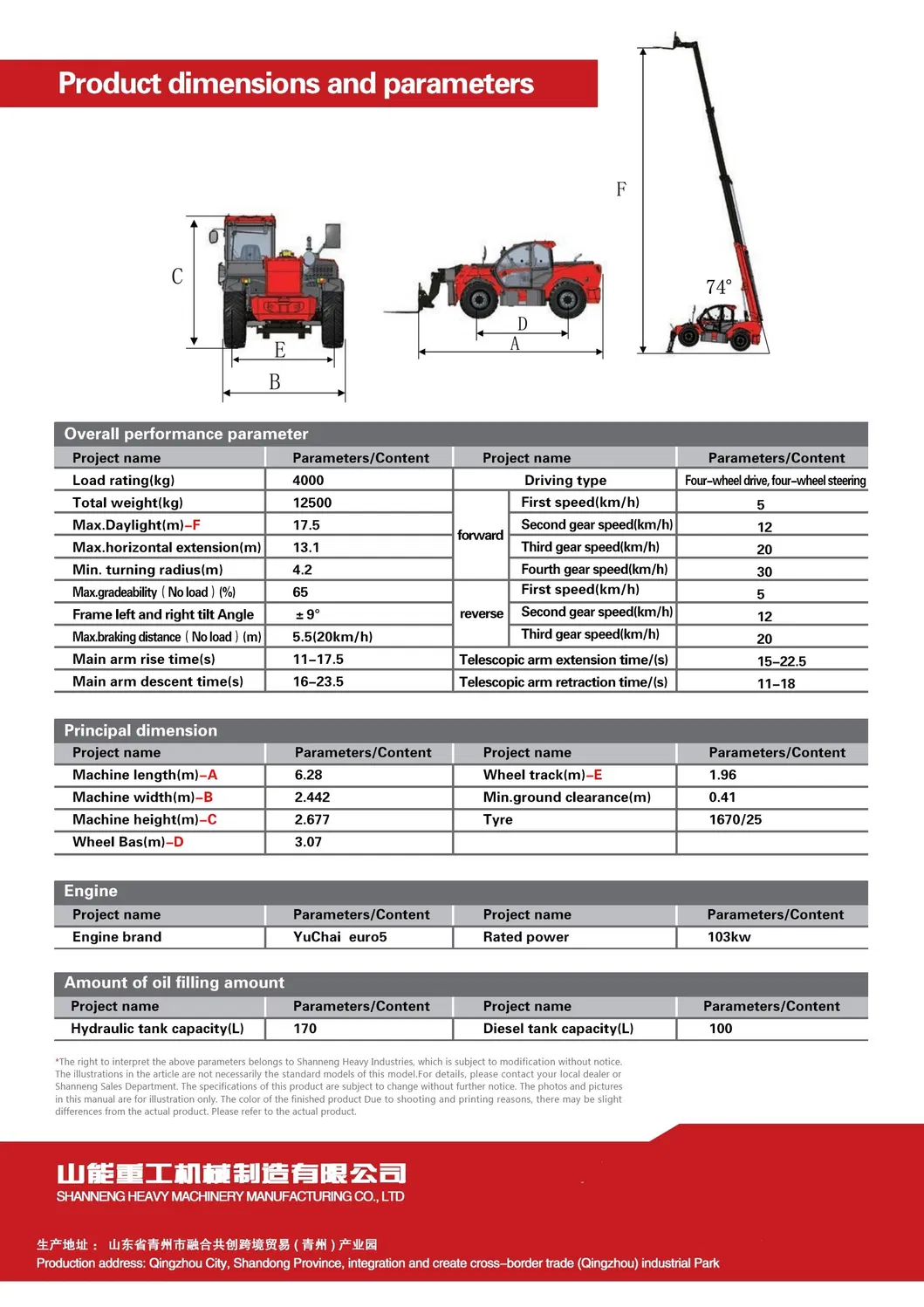

📊 Technical Parameters

Performance Parameter
Load rating	4000 kg
Total weight	12500 kg
Max. Working Height	18 m
Max. horizontal extension	13.1 m
Min. turning radius	4.2 m
Max. gradeability (No load)	65%
Frame tilt Angle (L/R)	±9°
Max. braking distance (20km/h)	5.5 m
Max Speed (Fourth gear)	30 km/h
Principal Dimensions
Machine Length/Width/Height	6.28 / 2.442 / 2.677 (m)
Wheel Base	3.07 m
Tyre Size	16/70-24
Engine & Capacity
Rated power	74.5 kw (Perkins)
Hydraulic tank capacity	170 L
Diesel tank capacity	100 L

📜 Certifications

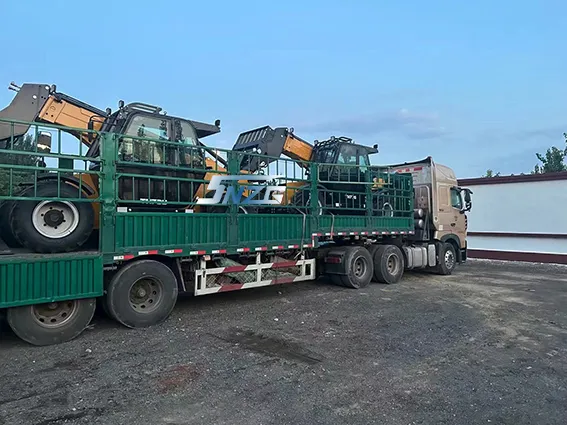

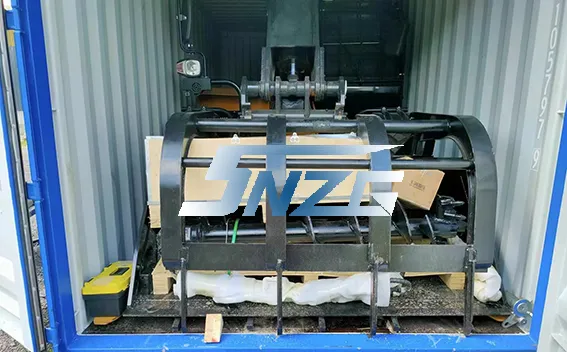

📦 Packaging & Delivery

Package Size	706.00cm * 245.00cm * 230.00cm
Package Gross Weight	14500.000kg
Transport Package	40'hq Container

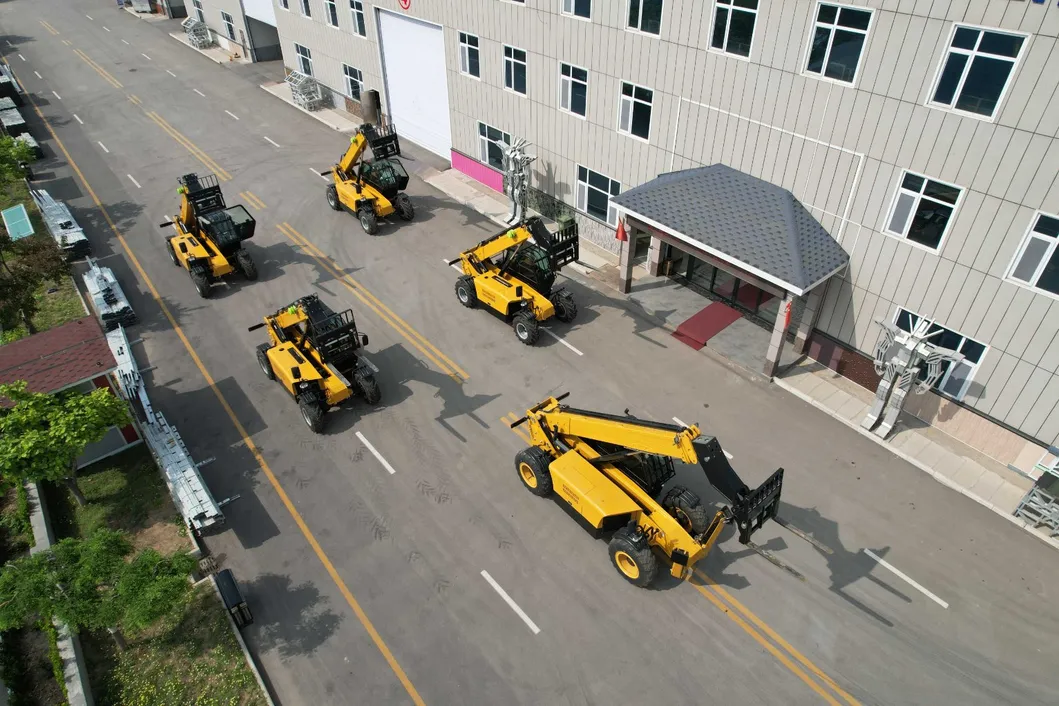

🏢 Factory Profile

Established in 2010, our company operates a factory facility of more than 5,000 square meters. We are an ODM and OEM manufacturer specializing in the research, development, and production of streamlined construction machinery.

Main products include wheel loaders, backhoe loaders, telescopic handlers, and electric loaders. With over 14 years of experience and continuous innovation, we provide high-performance machines focusing on safety and operator comfort.

👥 Our Professional Team

❓ Frequently Asked Questions

1. What is the maximum lift height of the TH1840 telehandler?

The TH1840 model offers a maximum working height of 18 meters, making it ideal for high-reach loading and material handling tasks.

2. What engine brands are used in this machine?

The telehandler is typically equipped with high-quality engines such as Perkins, Yunnei, or Yuchai, depending on the specific configuration and rated power requirements.

3. Does it support different steering modes for narrow spaces?

Yes, it features 4WD, 2WD, and Crab Steering modes, which provide excellent maneuverability in confined or complex working environments.

4. What is the material used for the telescopic boom?

The boom is constructed from 900L high-strength low-alloy steel, which ensures high yield strength and durability for heavy-load operations.

5. Can this telehandler be used on slopes?

Yes, it has a maximum theoretical gradeability of 65% (no load) and includes a frame tilt adjustment of ±9° to maintain stability on uneven ground.

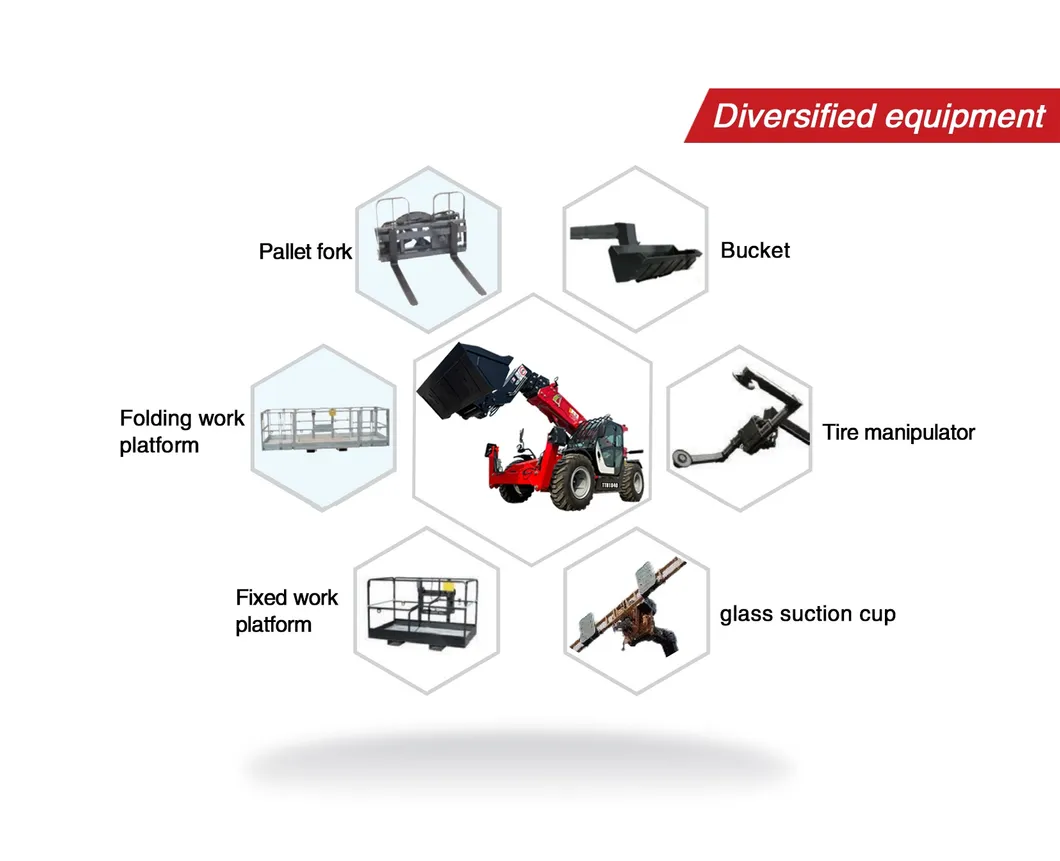

6. Are there other attachments available besides standard forks?

Yes, the machine can be equipped with various types of forks and specialized attachments to meet diverse loading, unloading, and handling requirements.
