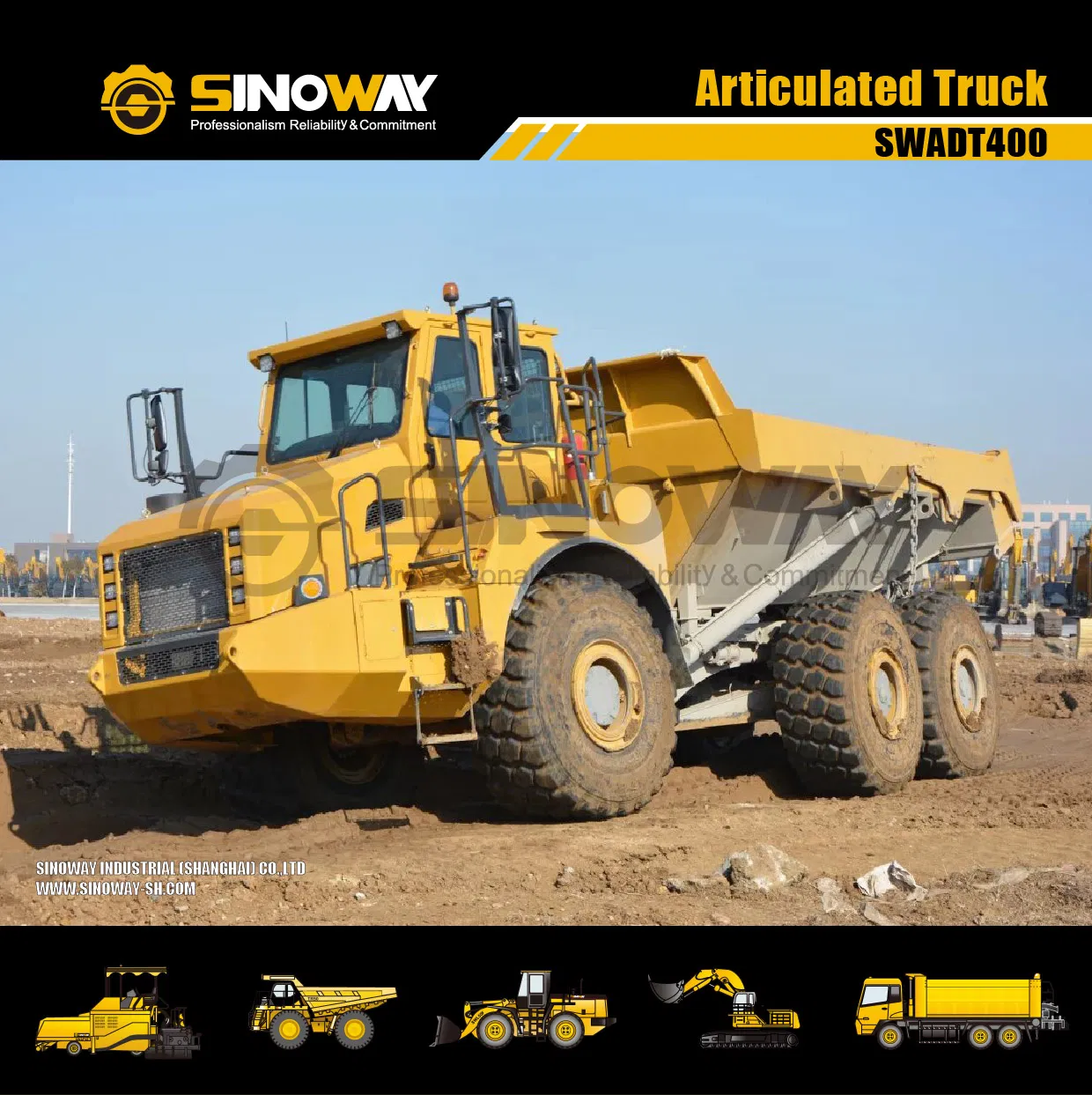

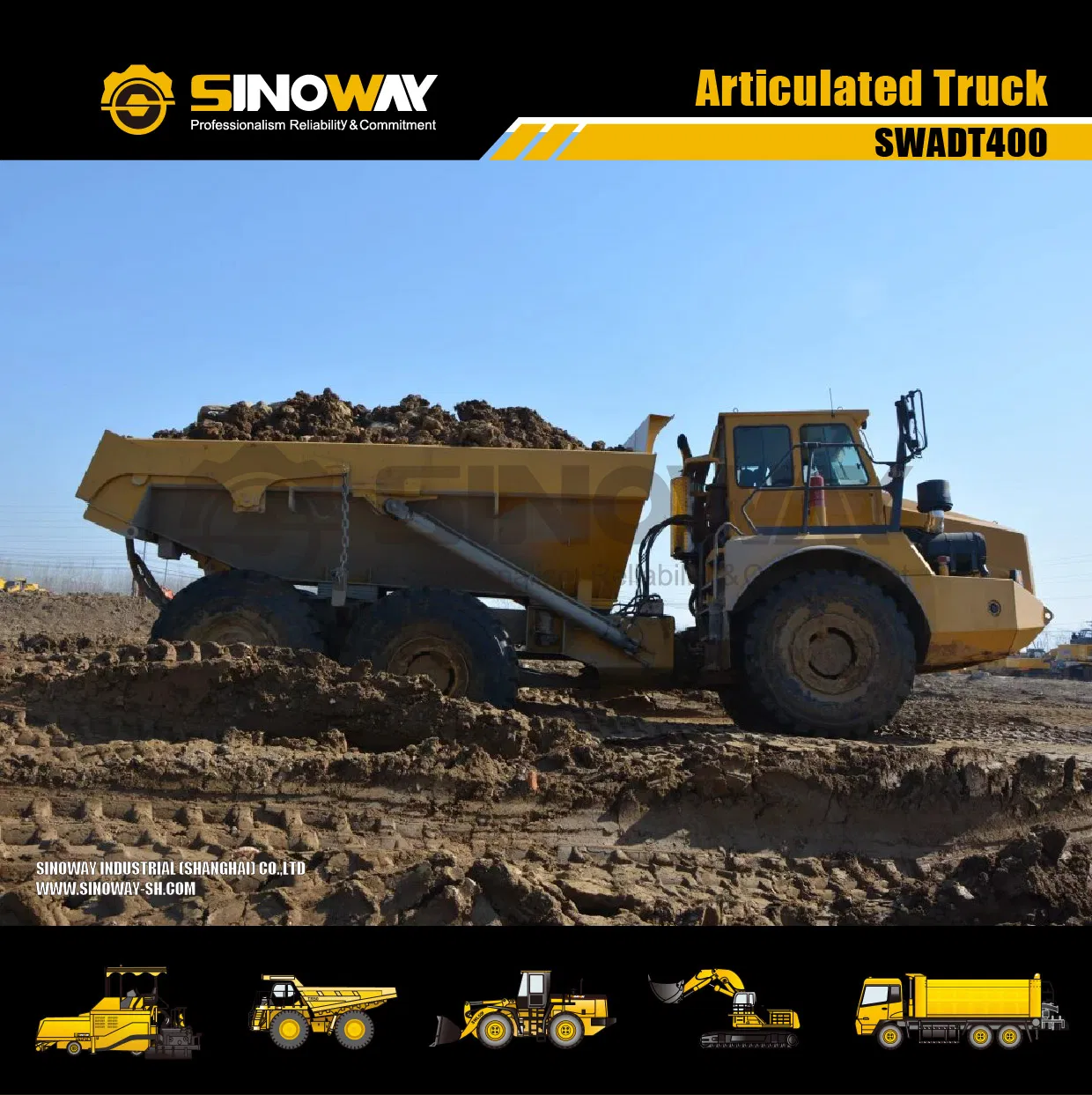

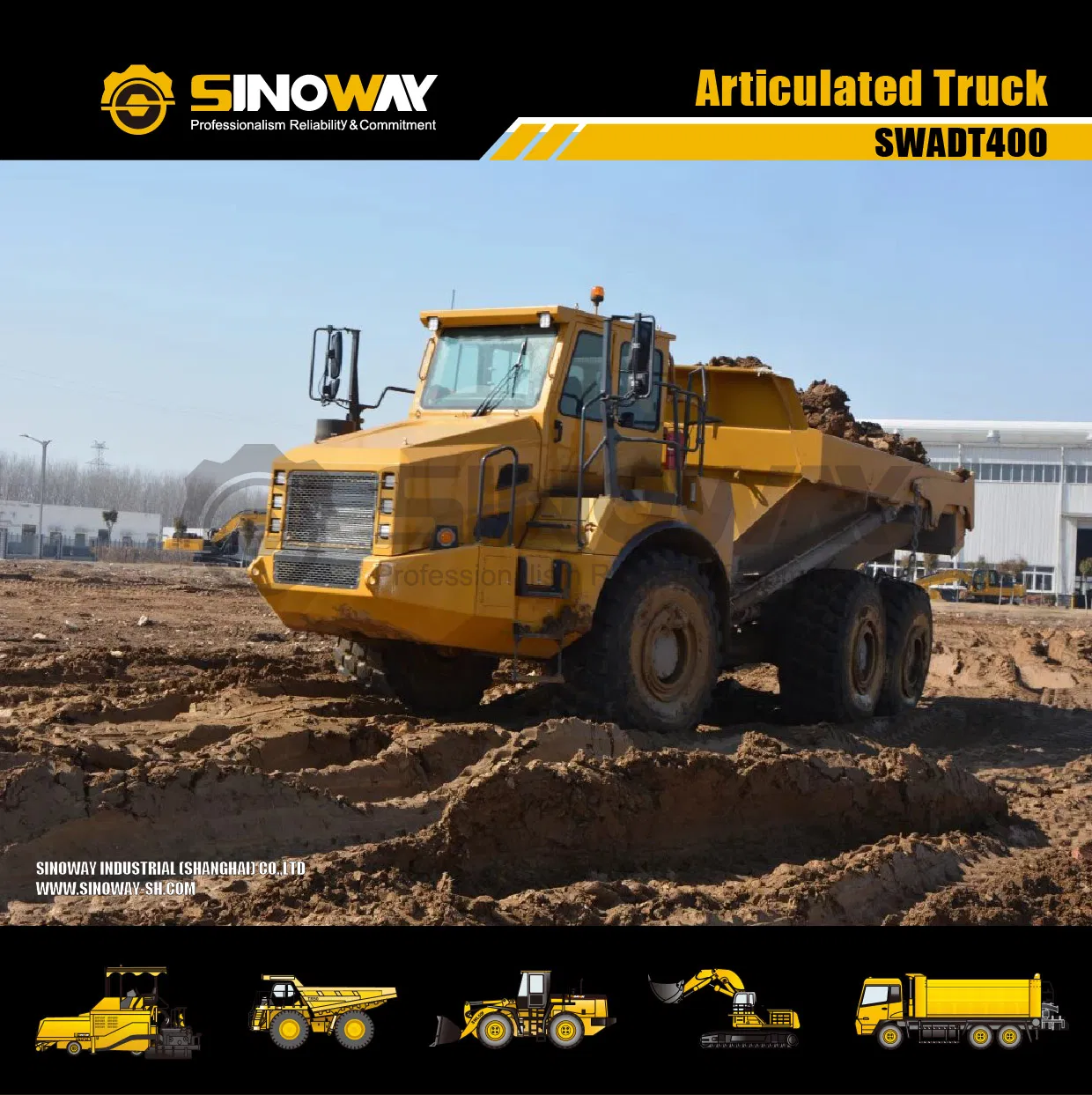

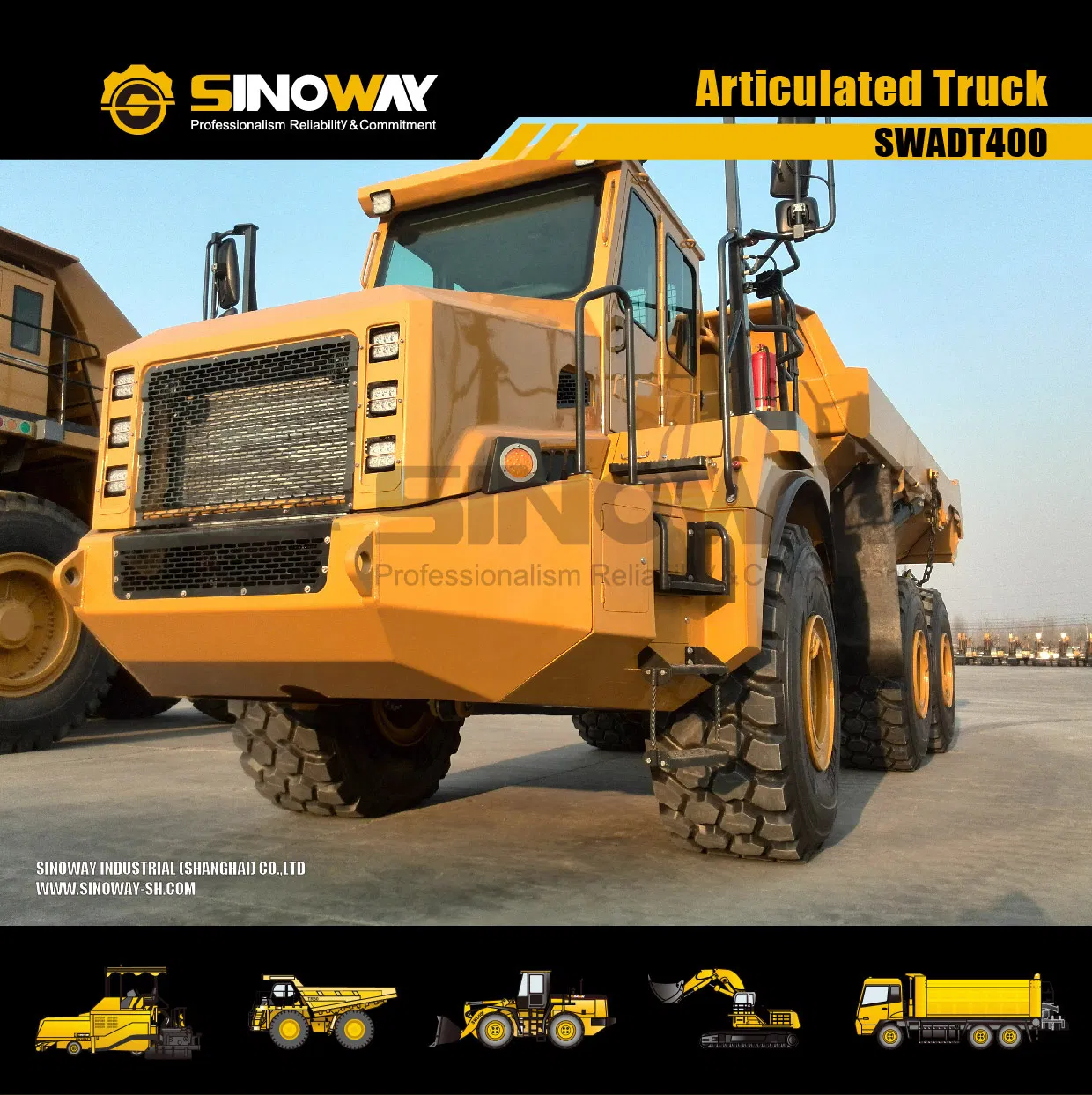

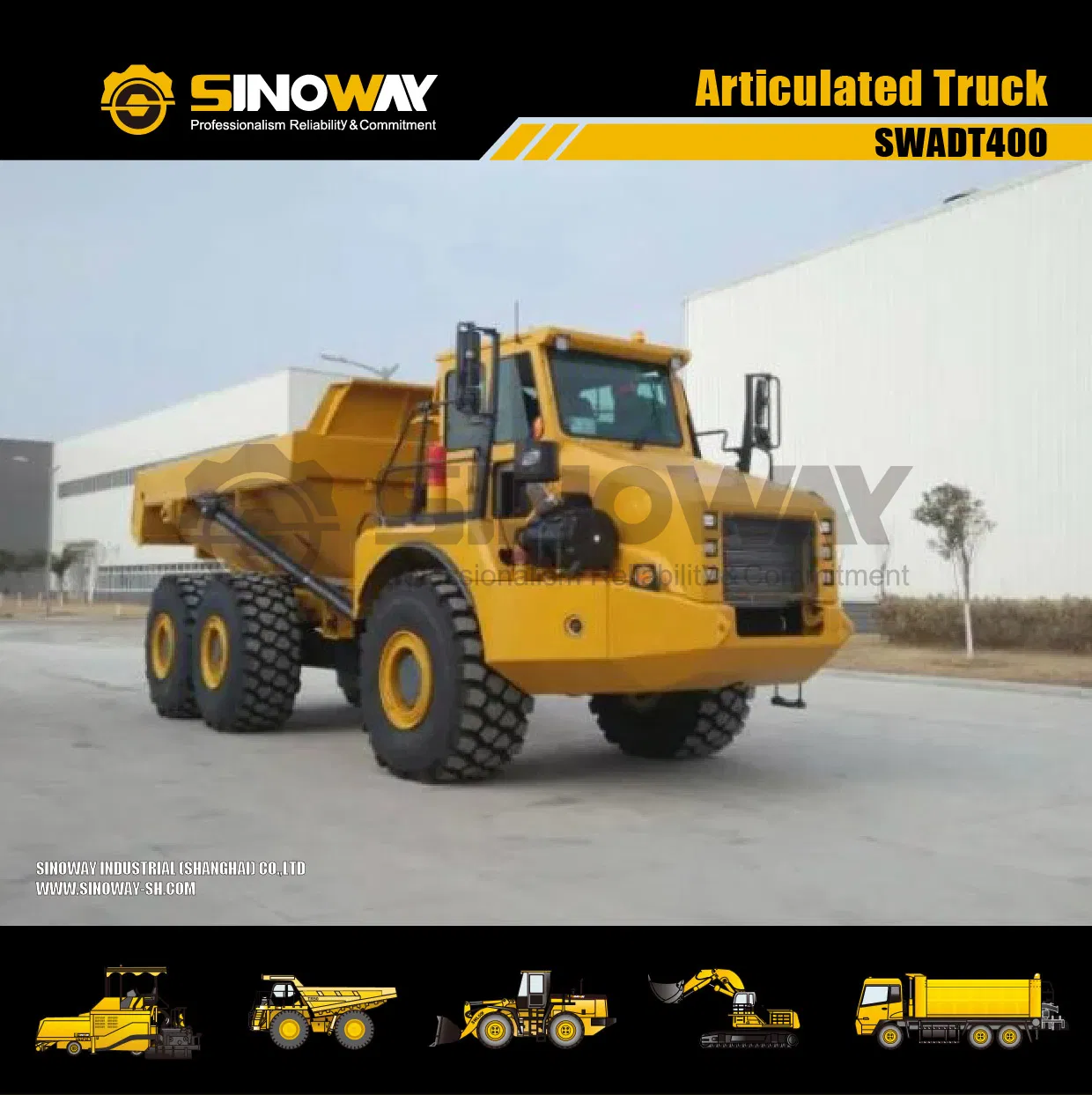

Heavy Duty 6X6 Articulated Mining Dump Trucks for Quarry Exploration

1 / 5

Heavy Duty 6X6 Articulated Mining Dump Trucks for Quarry Exploration

Customization:	Available
Transmission Type:	Automatic
Power:	Diesel

Send Inquiry

Product Description

Basic Specifications

Model NO.

SWADT400

Load Capacity

31-40t

Emission Standard

Euro 3

Drive Wheel

6×6

Engine Capacity

＞8L

Horsepower

451-500hp

Tire Design

Radial

Condition

New

Box Capacity

18.5m3

Max. Speed

60 Km/H

Loading Height

3.18 M

Tire Size

29.5r25

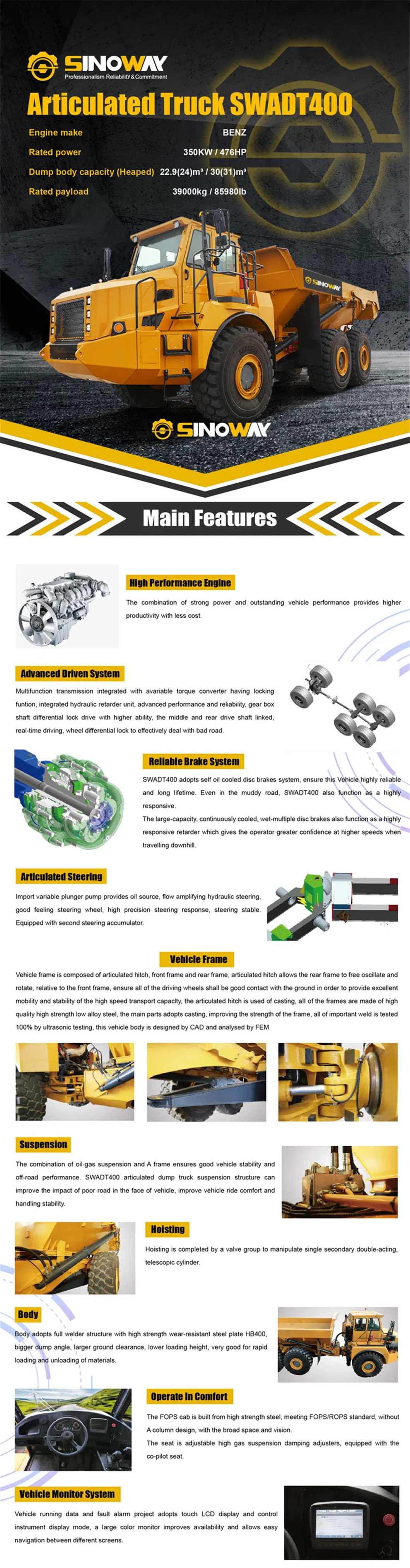

Main Advantages

Powerful Engine PerformanceTier 3 stage high power electronic control engine is adopted, providing stronger power for demanding mining and construction environments.

Robust Vehicle FrameComposed of an articulated hitch, front frame, and rear frame. The articulated hitch allows free oscillation and rotation, ensuring all driving wheels maintain ground contact for excellent mobility and stability.

Durable Body StructureFeatures a full welder structure with HB400 high-strength wear-resistant steel plate. Larger dump angles and lower loading heights facilitate rapid material handling.

Advanced Suspension & SteeringHydro-Pneumatic suspension combined with an A-frame ensures vehicle stability. High-quality variable plunger pumps provide precise and stable steering response.

Reliable Brake SystemEquipped with self-oil cooled disc brakes for high reliability and long lifetime, functioning responsively even on muddy roads.

Safety-First Cab DesignThe FOPS cab is built from high-strength steel with a broad field of vision. Includes 3-point seat belts, emergency stop, and rear window protection.

Technical Parameters

Overall length	10690mm
Overall width	3370mm
Overall height	3793mm
Wheelbase (front-mid)	4450mm
Total weight	73000kg
Payload capacity	39000kg
Engine	Benz OM502
Rated power	350 kw /1800rpm
Max. torque	2300N.m / 1300rpm
Max. speed	60km/h
Max. gradeability	45%
Hoist time	12s
Fuel Tank	550L
Body Capacity (Heaped)	22.9m3 / 24m3

Frequently Asked Questions

Q1: What is the maximum load capacity of the SWADT400?

The SWADT400 has a payload capacity of approximately 39,000kg (39 tons).

Q2: Which engine is used in this articulated dump truck?

The vehicle is powered by a Benz OM502 engine with a rated power of 350 kw at 1800rpm.

Q3: How does the steering system ensure stability?

It uses a flow-amplifying hydraulic steering system with a variable plunger pump and is equipped with a second steering accumulator for high precision and stability.

Q4: What are the safety certifications for the operator cab?

The cab meets FOPS (Falling Object Protective Structure) standards and is built from high-strength steel with optimized visibility.

Q5: Is the truck suitable for off-road or muddy conditions?

Yes, the 6x6 drive mode, Hydro-Pneumatic suspension, and self-oil cooled disc brakes make it highly efficient and reliable in harsh off-road and muddy environments.

Q6: What is the tipping/hoist time for the dump box?

The hoist time is approximately 12 seconds, allowing for rapid material unloading.
